SI7119DN - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-200V.
  • ID =-3.8 A (VGS =-10V).
  • RDS(ON) ＜ 1.05Ω (VGS =-10V).
  • RDS(ON) ＜ 1.1Ω (VGS =-6V) S G PowerPAK 1212-8 (QFN5X6) D.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current Single-Pulse Avalanche Energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resistance. Junction- to-Case Junction Temperature Junction Storage Temperature Range TC = 25 °C.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI7119DN P-Channel MOSFET Vishay Siliconix
Si7110DN N-Channel 20-V (D-S) Fast Switching MOSFET Vishay
Si7111EDN P-Channel 30 V (D-S) MOSFET Vishay
SI7112DN N-Channel 30 V (D-S) Fast Switching MOSFET Vishay
SI7113DN P-Channel MOSFET Vishay Siliconix

Other Datasheets by Kexin Semiconductor

Part Number Description
SI7129DN P-Channel MOSFET
SI7738DP N-Channel MOSFET
SI7898DP N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

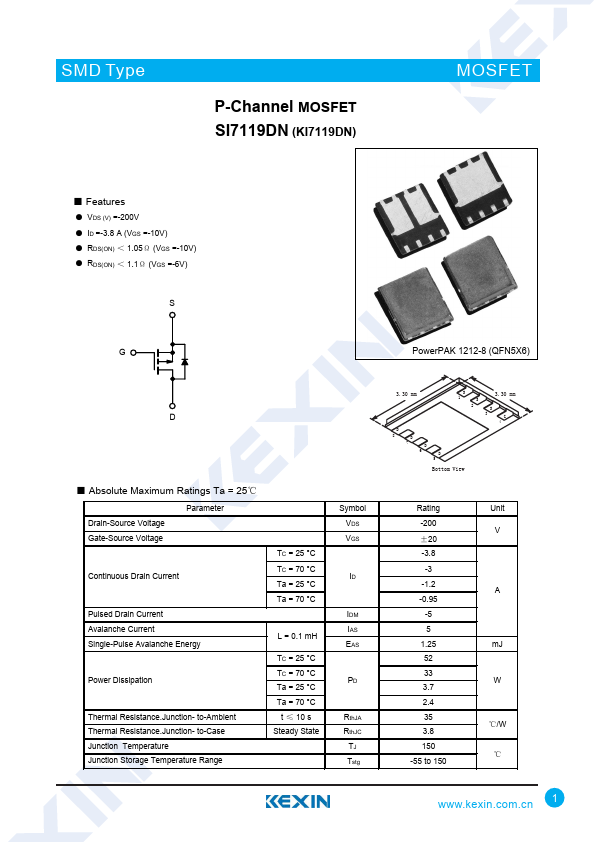

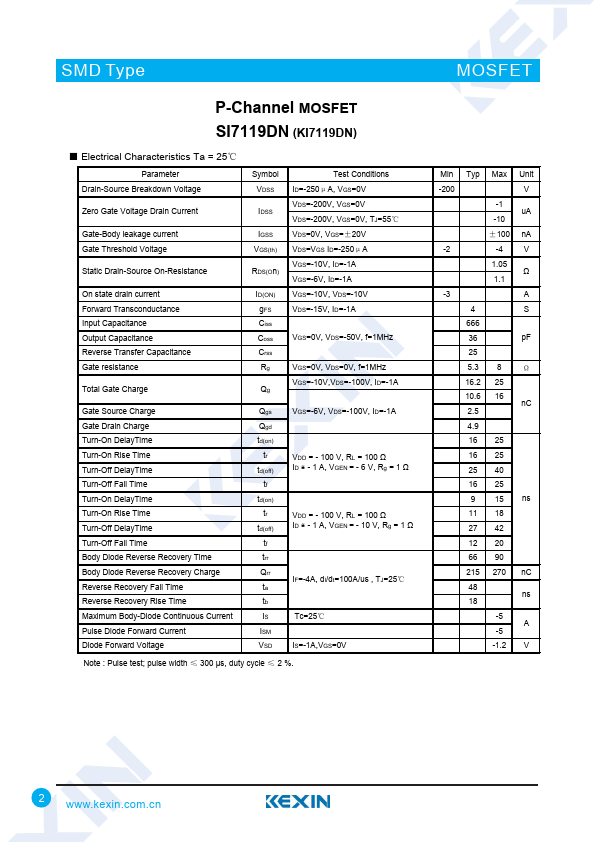

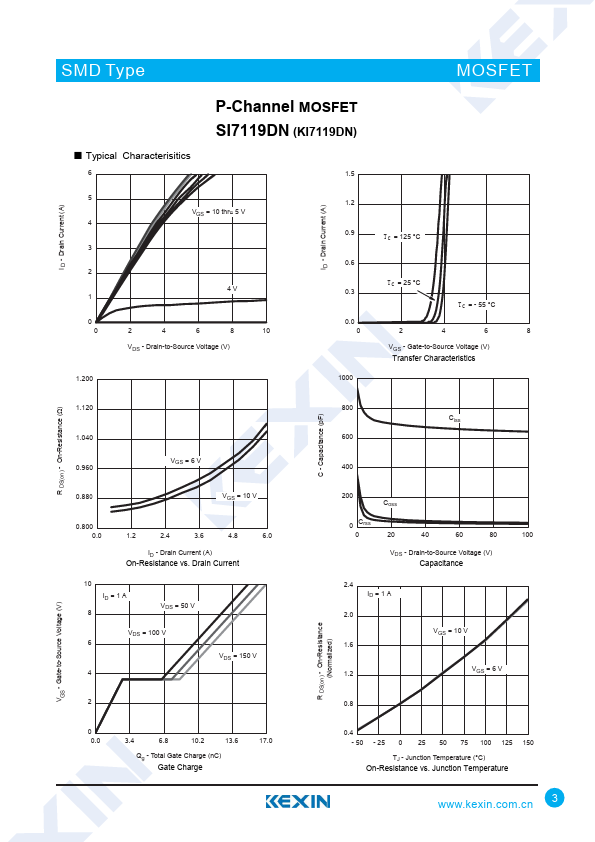

SMD Type P-Channel MOSFET SI7119DN (KI7119DN) MOSFET ■ Features ● VDS (V) =-200V ● ID =-3.8 A (VGS =-10V) ● RDS(ON) ＜ 1.05Ω (VGS =-10V) ● RDS(ON) ＜ 1.1Ω (VGS =-6V) S G PowerPAK 1212-8 (QFN5X6) D ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Current Single-Pulse Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Junction Storage Temperature Range TC = 25 °C TC = 70 °C Ta = 25 °C Ta = 70 °C L = 0.1 mH TC = 25 °C TC = 70 °C Ta = 25 °C Ta = 70 °C t ≤ 10 s Steady State Symbol VDS VGS ID IDM IAS EAS PD RthJA RthJC TJ Tstg 3.30 mm D 8 D 7 D 6 D 5 S 1 S 3.
