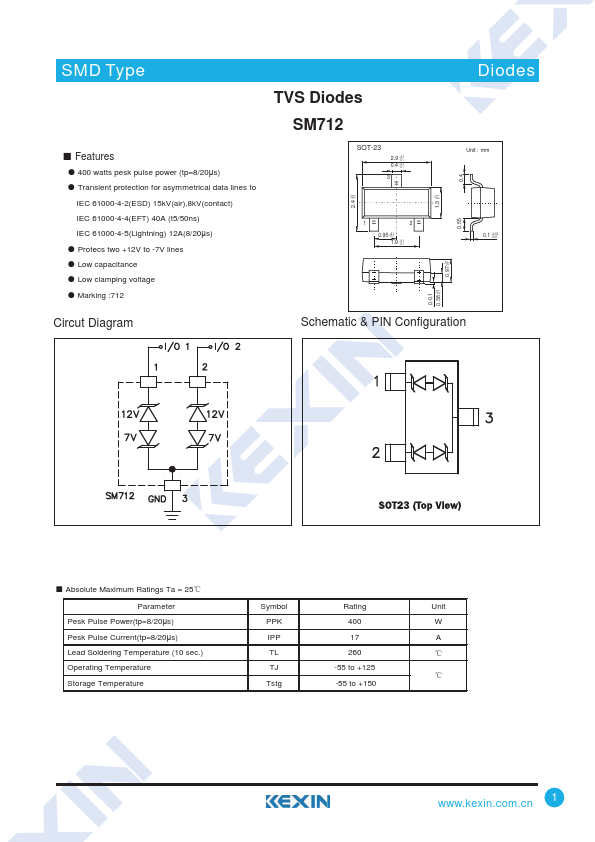

SM712
Features
ƽ 400 watts pesk pulse power (tp=8/20ȝs) ƽ Transient protection for asymmetrical data lines to
IEC 61000-4-2(ESD) 15k V(air),8k V(contact) IEC 61000-4-4(EFT) 40A (t5/50ns) IEC 61000-4-5(Lightning) 12A(8/20ȝs) ƽ Protecs two +12V to -7V lines ƽ Low capacitance ƽ Low clamping voltage ƽ Marking :712
TVS Diodes
SOT-23
2.9 +0.1 -0.1
0.4 +0.1 -0.1
+0.1 2.4 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.1
+0.1 1.3 -0.1
+0.1 0.97 -0.1
Diodes
Unit : mm 0.1 +0.05
-0.01
0-0.1 +0.1 0.38
-0.1
Circut Diagram
Schematic & PIN Configuration
Ƶ Absolute Maximum Ratings Ta = 25ć
Parameter Pesk Pulse Power(tp=8/20ȝs) Pesk Pulse Current(tp=8/20ȝs) Lead Soldering Temperature (10 sec.) Operating Temperature Storage Temperature
Symbol
Rating
Unit
ć
-55 to +125
ć
Tstg
-55 to +150
.kexin..cn 1
