SRV05-4

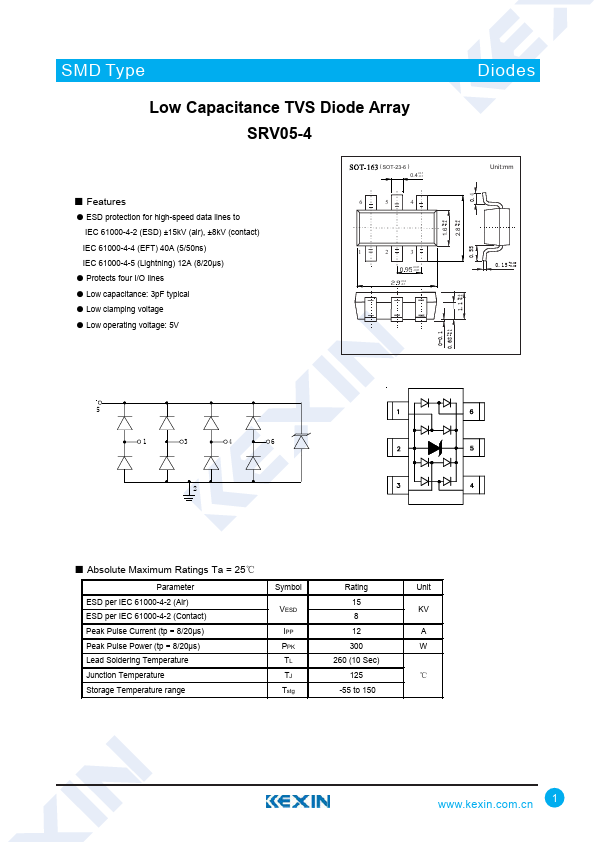

Features
- ESD protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15k V (air), ±8k V (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 12A (8/20μs)
- Protects four I/O lines
- Low capacitance: 3p F typical
- Low clamping voltage
- Low operating voltage: 5V
( SOT-23-6 ) 0.4+0.1
-0.1
+0.01 -0.01 +0.2 -0.1
+0.2 1.6 -0.1
+0.2 2.8 -0.1
+0.1 1.1 -0.1
Diodes
Unit:mm 0.15 +0.02
-0.02
0-0.1 +0.1 0.68
-0.1
- Absolute Maximum Ratings Ta = 25℃
Parameter ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) Peak Pulse Current (tp = 8/20μs) Peak Pulse Power (tp = 8/20μs) Lead Soldering Temperature Junction Temperature Storage Temperature range
Symbol
Rating
Unit
VESD...
