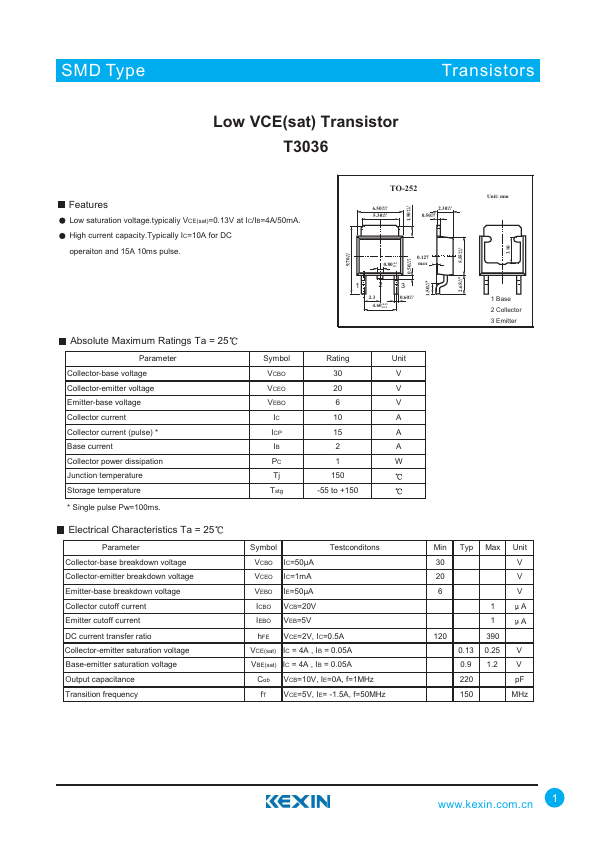

T3036 Datasheet Low Vce(sat) Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors Low VCE(sat) Transistor T3036.

Key Features

  • Low saturation voltage. typicaliy VCE(sat)=0.13V at IC/IB=4A/50mA. High current capacity. Typically IC=10A for DC operaiton and 15A 10ms pulse. +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 +0.15 1.50 -0.15 +0.15 0.50 -0.15 +0.28 1.50 -0.1 0.80+0.1 -0.1 0.127 max 1 2 2.3 4.60+0.15 -0.15 3 0.60+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current (.
