Kexin Electronics UET14A05L03
ESD Protection Devices
| Part No. | UET14A05L03 |
|---|---|
| Datasheet | UET14A05L03 Download |
| Manufacturer | Kexin Electronics |
| Description | ESD Protection Devices |
| Buy | Stock & Price |
FEATURES

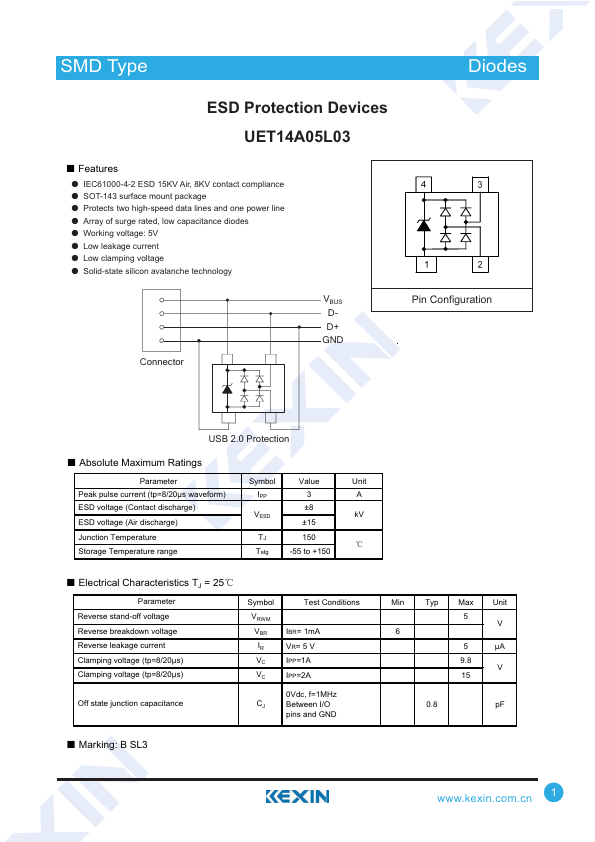

ƽ IEC61000-4-2 ESD 15KV Air, 8KV contact compliance ƽ SOT-143 surface mount package ƽ Protects two high-speed data lines and one power line ƽ Array of surge rated, low capacitance diodes ƽ Working voltage: 5V ƽ Low leakage current ƽ Low clamping voltage ƽ Solid-state silicon avalanche technology Connector VBUS DD+ GND Pin Configuration USB 2.0 Protection ƵABSOLUTE MAXIMUM RATINGS
Parameter Peak pulse current (tp=8/20ȝs waveform) ESD voltage (Contact discharge) ESD voltage (Air discharge) Junction Temperature Storage Temperature range Symbol Value Unit IPP 3 A ±8 VESD kV ±15 TJ 150 ć Tstg -55 to +150 ƵELECTRICAL CHARACTERISTICS
TJ = 25ć Parameter Reverse stand-off voltage Reverse breakdown voltage Reverse leakage current Clamping voltage (tp=8/20ȝs) Clamping voltage (tp=8/20ȝs) Off state junction capacitance Symbol VRWM VBR IR VC VC CJ Test Conditions IBR= 1mA VR= 5 V IPP=1A IPP=2A 0Vdc, f=1MHz Between I/O pins and GND Min Typ Max Unit 5 V 6 5 ȝA 9.8 V 15 0.8 pF Ƶ Marking: B...
