ZXMS6004FF - N-Channel Self Protected Enhancement Mode MOSFET

Key Features

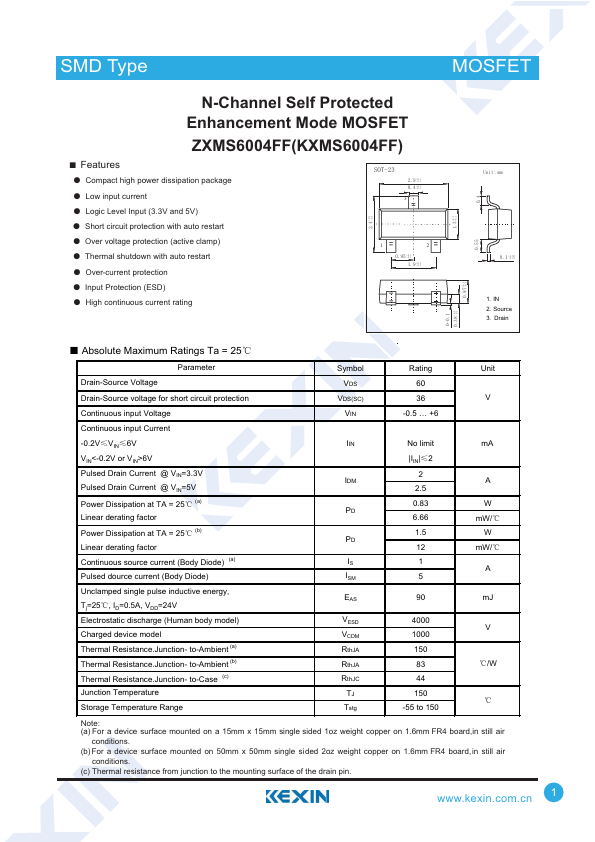

  • ƽ Compact high power dissipation package ƽ Low input current ƽ Logic Level Input (3.3V and 5V) ƽ Short circuit protection with auto restart ƽ Over voltage protection (active clamp) ƽ Thermal shutdown with auto restart ƽ Over-current protection ƽ Input Protection (ESD) ƽ High continuous current rating +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. IN 2. Source 3. Drain 0-0.1 +0.1.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ZXMS6004FF 60V N-Channel MOSFET Diodes Incorporated
ZXMS6004FFQ N-CHANNEL SELF PROTECTED ENHANCEMENT MODE MOSFET Diodes
ZXMS6004DG 60V N-CHANNEL MOSFET DIODES
ZXMS6004DGQ 60V N-CHANNEL MOSFET Diodes
ZXMS6004DGQ-13 60V N-CHANNEL MOSFET DIODES

Other Datasheets by Kexin Semiconductor

Part Number Description
ZXMN10A08G N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

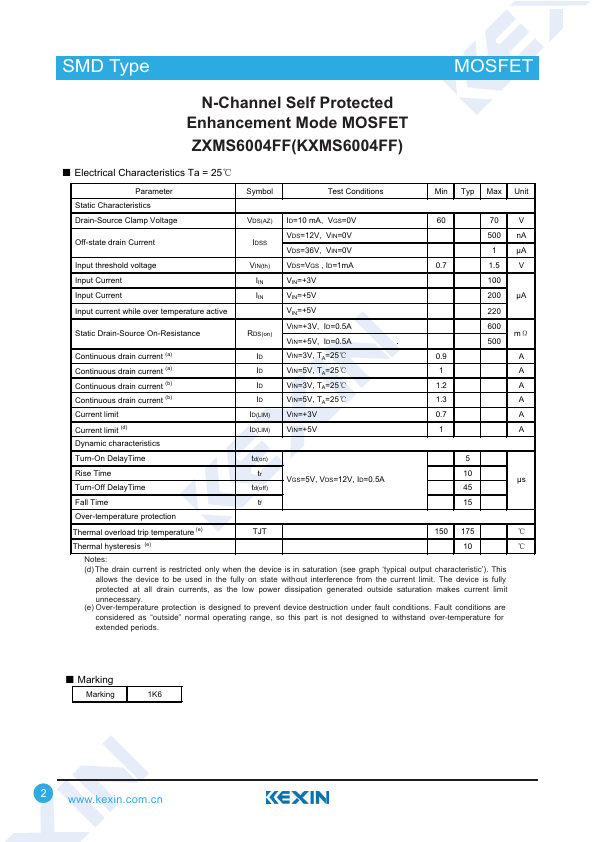

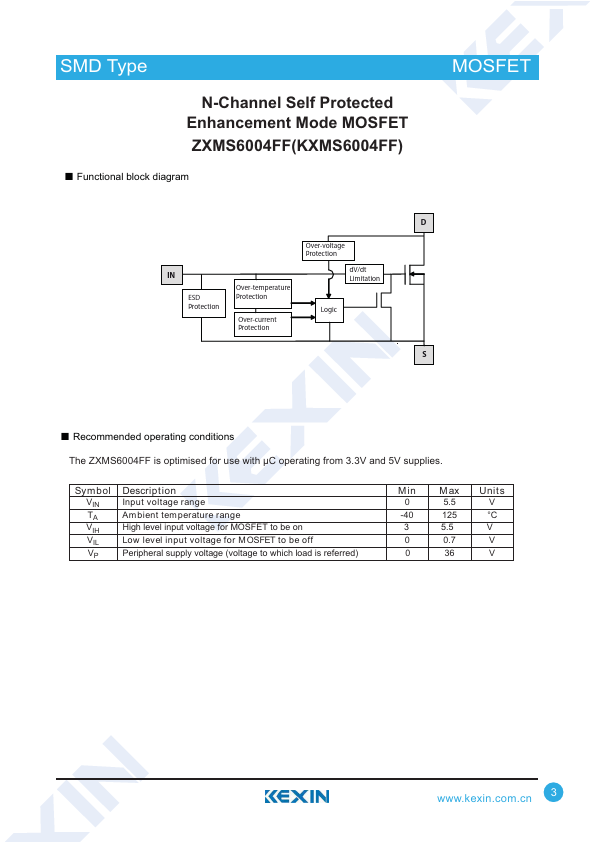

SMD Type TraMnOsiSsFtoErsT N-Channel Self Protected Enhancement Mode MOSFET ZXMS6004FF(KXMS6004FF) ƵFeatures ƽ Compact high power dissipation package ƽ Low input current ƽ Logic Level Input (3.3V and 5V) ƽ Short circuit protection with auto restart ƽ Over voltage protection (active clamp) ƽ Thermal shutdown with auto restart ƽ Over-current protection ƽ Input Protection (ESD) ƽ High continuous current rating +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. IN 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Drain-Source Voltage Drain-Source voltage for short circuit protection Continuous input Voltage Continuous input Current -0.
