Kexin Electronics ZXTP19100CFF
PNP Medium Power Transistor
| Part No. | ZXTP19100CFF |
|---|---|
| Datasheet | ZXTP19100CFF Download |
| Manufacturer | Kexin Electronics |
| Description | PNP Medium Power Transistor |
| Buy | Stock & Price |
FEATURES
● BVCEO > -100V● BVECO > -7V
● IC = -2A Continuous Collector Current
● Saturation Voltage VCE(SAT) < -120mV @ -1A
● hFE Characterised Up to -2A
● RCE(SAT) = 95mΩ
● 1.5W Power Dissipation
● Complementary NPN Type: ZXTN19100CFF +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1.Base 2.Emitter 3.collector 0-0.1 +0.1 0.68 -0.1
●

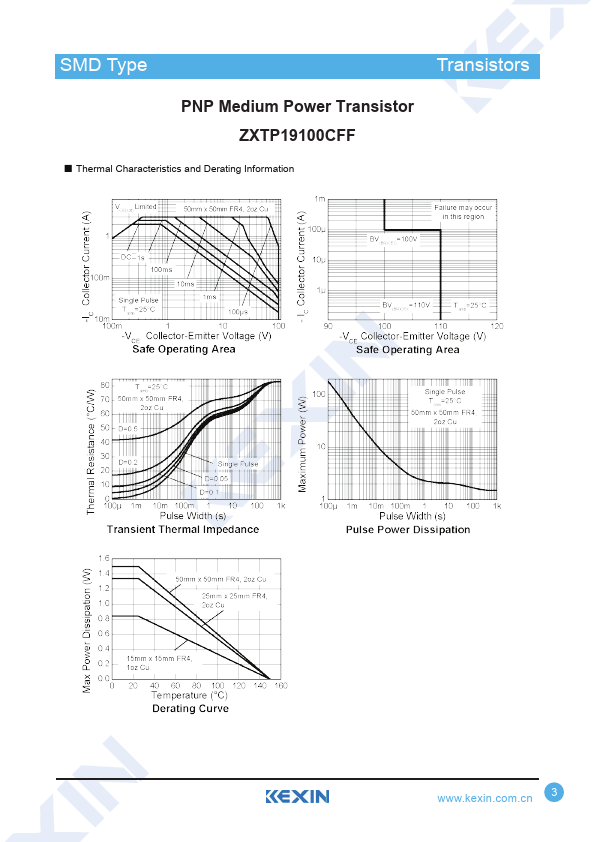

ABSOLUTE MAXIMUM RATINGS
(@TA = +25℃, unless otherwise specified.) Parameter Collector - Base Voltage Collector-Emitter Voltage (Forward blocking) Collector - Emitter Voltage Emitter-Collector Voltage (Reverse blocking) Emitter - Base Voltage Collector Current - Continuous Peak Pulse Current Base Current Symbol VCBO VCEX VCEO VECO VEBO IC ICM IB (Note 1) Power Dissipation Linear Derating Factor (Note 2) PD (Note 3) Thermal Resistance Junction to Ambient Thermal Resistance, Junction to Lead Junction Temperature Storage Temperature range (Note 4) (Note 1) (No...
