ACSC02-41-CN22-F01 - Surface Mount Display

Download the ACSC02-41-CN22-F01 datasheet PDF. This datasheet also covers the ACSC02-41CN22F01 variant, as both devices belong to the same surface mount display family and are provided as variant models within a single manufacturer datasheet.

General Description

The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode PACKAGE DIMENSIONS

Key Features

  • 0.2 inch digit height Low current operation Excellent character appearance Mechanically rugged l Gray face, white segment Package: 650 pcs / reel Moisture sensitivity level: 2a ia RoHS compliant t.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ACSC02-41CN22F01-Kingbright.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ACSC02-41-CN22-F01
Manufacturer Kingbright
File Size 468.86 KB
Description Surface Mount Display
Datasheet download datasheet ACSC02-41-CN22-F01 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ACS00MS Radiation Hardened Quad 2-Input NAND Gate Intersil Corporation
ACS02MS Radiation Hardened Quad 2-Input NOR Gate Intersil Corporation
ACS03MS Radiation Hardened Quad 2-Input NAND Gate Intersil Corporation
ACS04MS Radiation Hardened Hex Inverter Intersil Corporation
ACS05MS Radiation Hardened Hex Inverter Intersil Corporation

Other Datasheets by Kingbright

Part Number Description
ACSC02-41SGWA-F01 Surface Mount Display
ACSC56-41CGKWA-F01 SURFACE MOUNT DISPLAY
ACSA08-51SYKWA Surface Mount Display

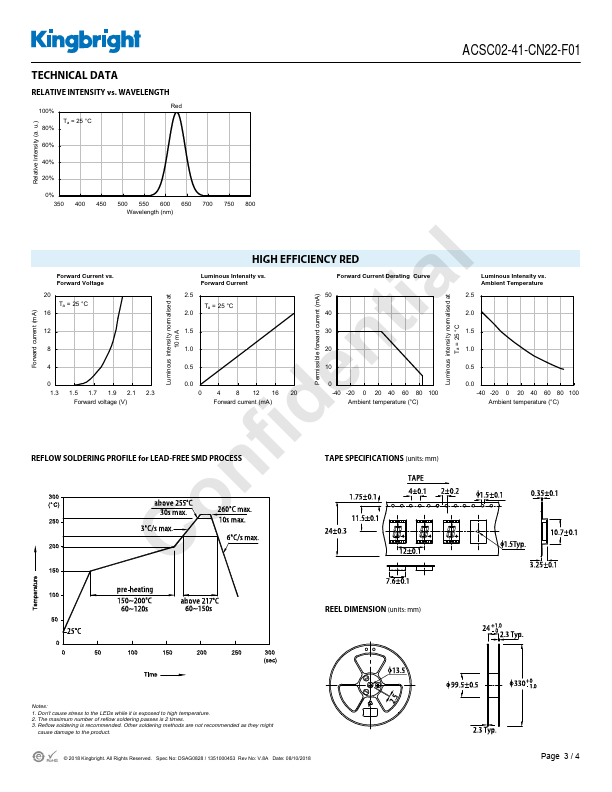

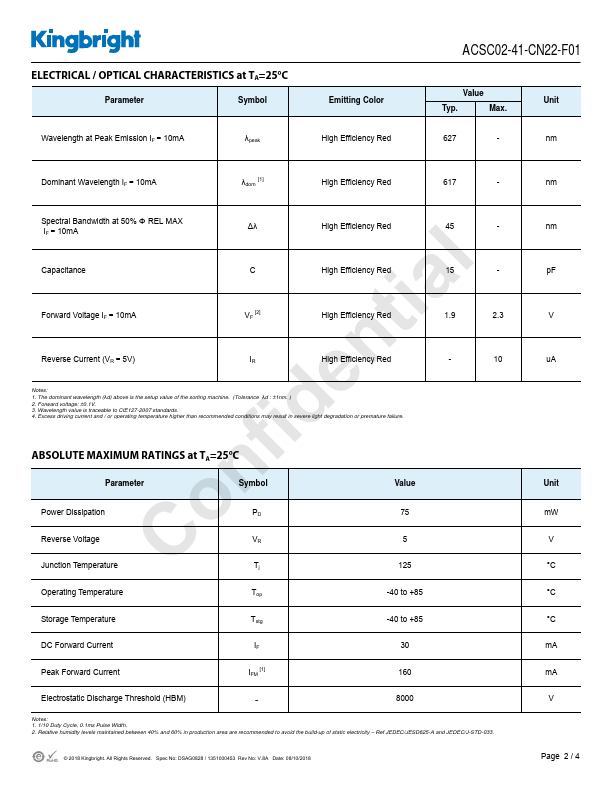

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

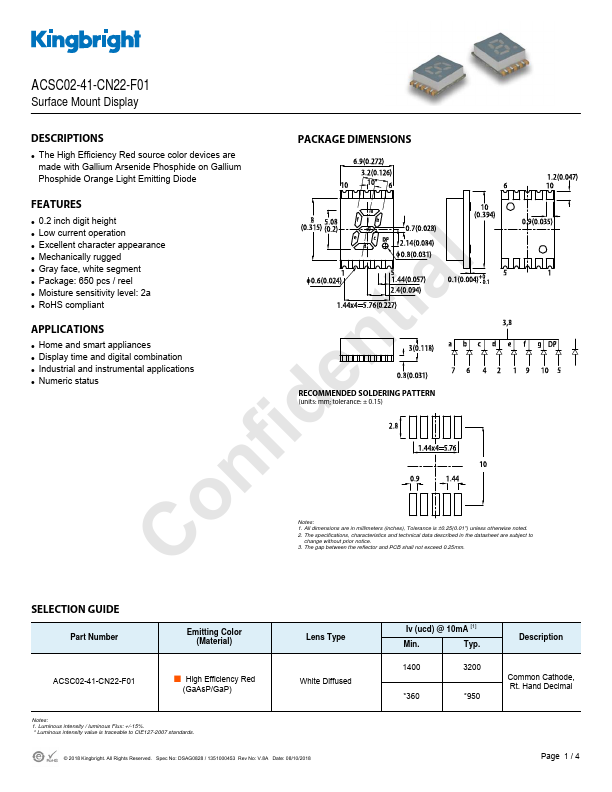

ACSC02-41-CN22-F01 Surface Mount Display DESCRIPTIONS The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode PACKAGE DIMENSIONS FEATURES 0.2 inch digit height Low current operation Excellent character appearance Mechanically rugged l Gray face, white segment Package: 650 pcs / reel Moisture sensitivity level: 2a ia RoHS compliant t APPLICATIONS Home and smart appliances Display time and digital combination n Industrial and instrumental applications e Numeric status RECOMMENDED SOLDERING PATTERN (units: mm; tolerance: ± 0.15) nfidNotes: o 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01") unless otherwise noted. 2.
