BC807-16 datasheet by Kingtronics.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BC807-16 |
|---|---|
| Datasheet | BC807-16 BC807 Datasheet (PDF) |
| File Size | 678.92 KB |
| Manufacturer | Kingtronics |
| Description | PNP Silicon Epitaxial Planar Transistors |
|
|

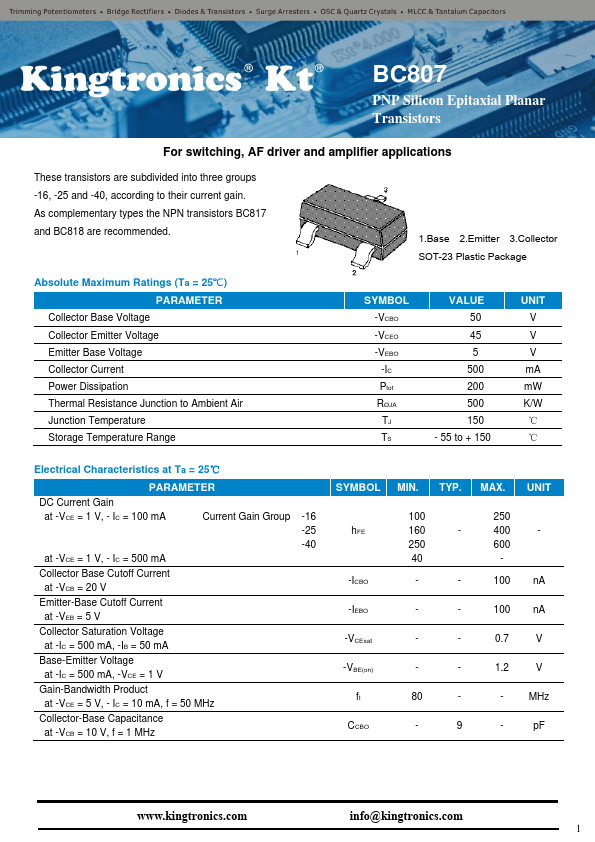

BC807 PNP Silicon Epitaxial Planar Transistors For switching, AF driver and amplifier applications These transistors are subdivided into three groups -16, -25 and -40, according to their current gain. As plementary types the NPN transistors BC817 and BC818 are remended. hFE -ICBO 100 160 - 250 40 - - -IEBO - - -VCEsat - - -VBE(on) - - ft 80 - CCBO - 9 MAX.
