Datasheet Details
| Part number | KSP9435A |
|---|---|
| Manufacturer | Korsun Semiconductor |
| File Size | 742.12 KB |
| Description | -30V P-Channel MOSFET |
| Datasheet |
 KSP9435A Datasheet
|
|
|

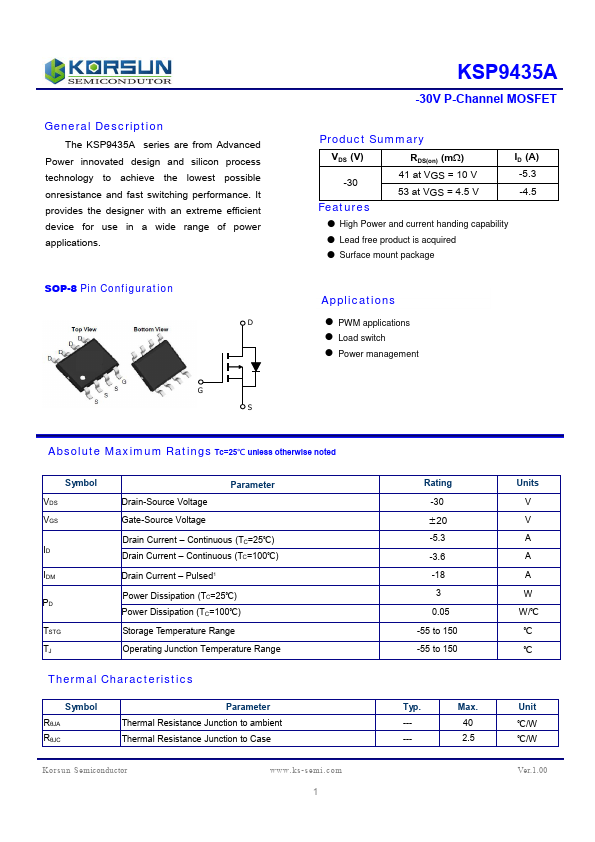

General Description
The KSP9435A series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching performance.
It provides the designer with an extreme efficient device for use in a wide range of power applications.
Key Features
- RDS(on) (mΩ) 41 at VGS = 10 V 53 at VGS = 4.5 V ID (A) -5.3 -4.5.
- High Power and current handing capability.
- Lead free product is acquired.
- Surface mount package.
