LP2188AL - Non-Isolated Buck Switching Power Supply Constant Voltage Control Driver

Product Overview

Datasheet Details

Part number	LP2188AL
Manufacturer	LANDP
File Size	845.13 KB
Description	Non-Isolated Buck Switching Power Supply Constant Voltage Control Driver
Datasheet	LP2188AL Datasheet
Additional preview pages of the LP2188AL datasheet.

LP2188AL Product details

Description

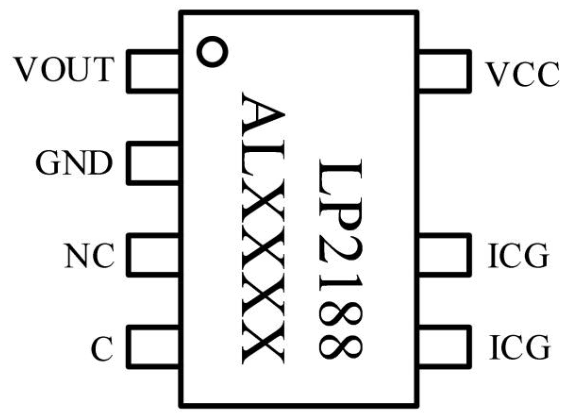

X: The first letter represents the year, A: 2014, B: 2015, C: 2016, D: 2017 and so on in sequence X: The second number or letter represents the week number.

Week 1: 1, 2, 3, 4, 5, 6, 7, 8, and so on to Week 9: 9.

Starting from Week 10, Capital letters AB CZ, and so on.

Features

LP2188AL is a high-efficiency and high-precision non-isolated step-down switching power supply constant voltage control driver chip. It is suitable for non-isolated Buck and Buckboost topologies with a full range of input voltages from 85VAC to 265VAC, and is especially suitable for driving power supplies such as small appliances and white appliances. LP2188AL integrates high-voltage power tubes and adopts constant voltage control mode. The system can work in CCM and DCM modes. It adopts a uniq.
