ML22460MB
ML22460MB is Speech Synthesis LSI manufactured by LAPIS.
- Part of the ML22420MB comparator family.
- Part of the ML22420MB comparator family.

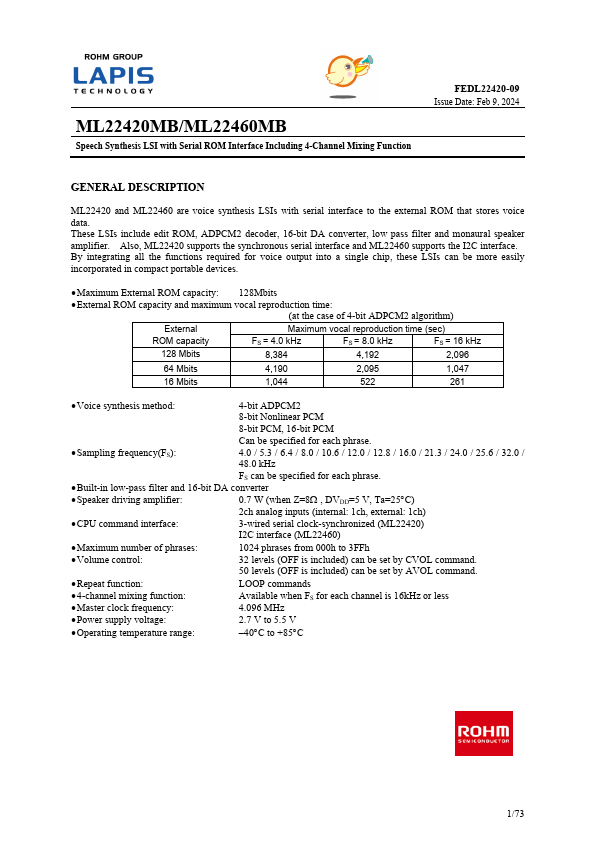

DESCRIPTION
ML22420 and ML22460 are voice synthesis LSIs with serial interface to the external ROM that stores voice data. These LSIs include edit ROM, ADPCM2 decoder, 16-bit DA converter, low pass filter and monaural speaker amplifier. Also, ML22420 supports the synchronous serial interface and ML22460 supports the I2C interface. By integrating all the functions required for voice output into a single chip, these LSIs can be more easily incorporated in pact portable devices.
- Maximum External ROM capacity: 128Mbits
- External ROM capacity and maximum vocal reproduction time:
(at the case of 4-bit ADPCM2 algorithm)
External
Maximum vocal reproduction time (sec)
ROM capacity
FS = 4.0 k Hz
FS = 8.0 k Hz
FS = 16 k Hz
128 Mbits
8,384
4,192
2,096
64 Mbits
4,190
2,095
1,047
16 Mbits
1,044
- Voice synthesis method:
4-bit ADPCM2
8-bit Nonlinear PCM
8-bit PCM, 16-bit PCM
Can be specified for each phrase.
- Sampling frequency(FS):
4.0 / 5.3 / 6.4 / 8.0 / 10.6 / 12.0 / 12.8 / 16.0 / 21.3 / 24.0 / 25.6 / 32.0 /
48.0 k Hz
FS can be specified for each phrase.
- Built-in low-pass filter and 16-bit DA converter
- Speaker driving amplifier:
0.7 W (when Z=8Ω , DVDD=5 V, Ta=25°C)
2ch analog inputs (internal: 1ch, external: 1ch)
- CPU mand interface:
3-wired serial clock-synchronized (ML22420)
I2C interface (ML22460)
- Maximum number of...
