ML22864
ML22864 is LSI manufactured by LAPIS.
- Part of the ML22825 comparator family.
- Part of the ML22825 comparator family.

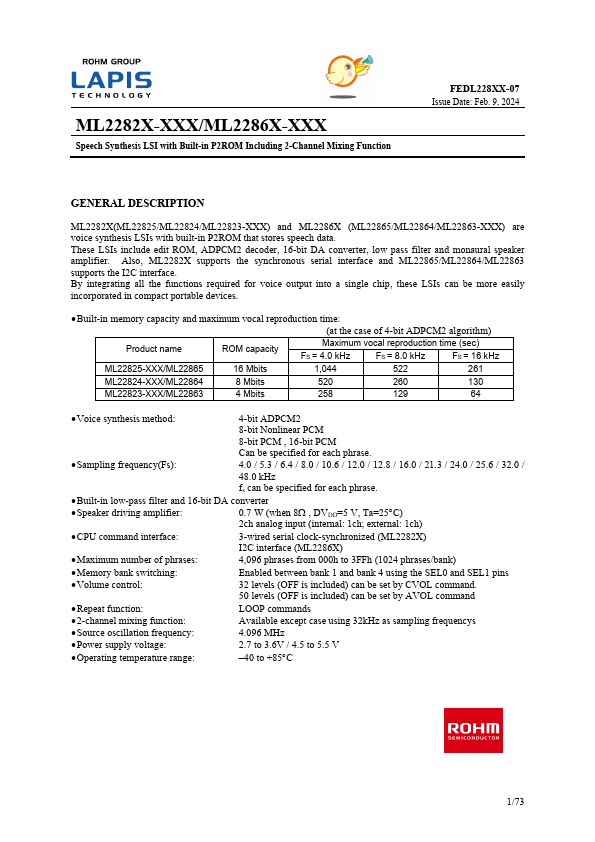

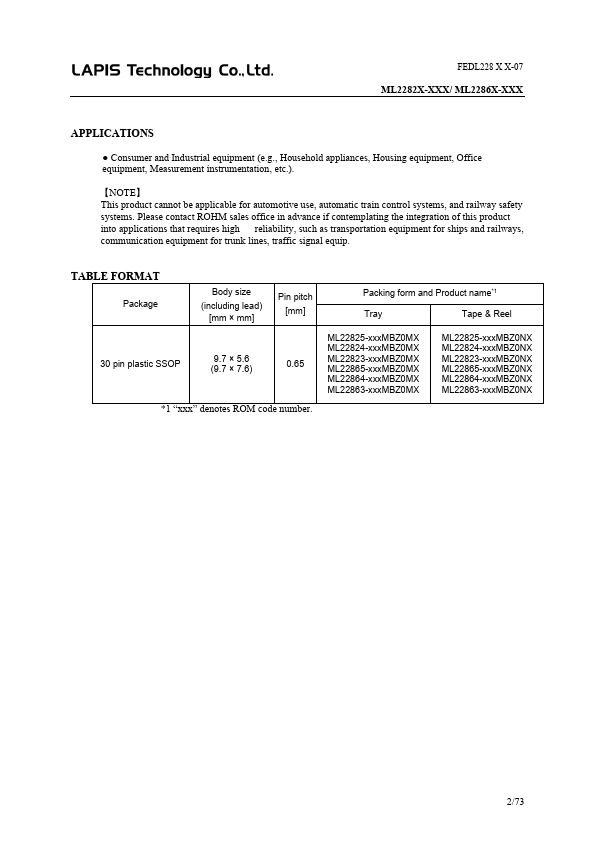

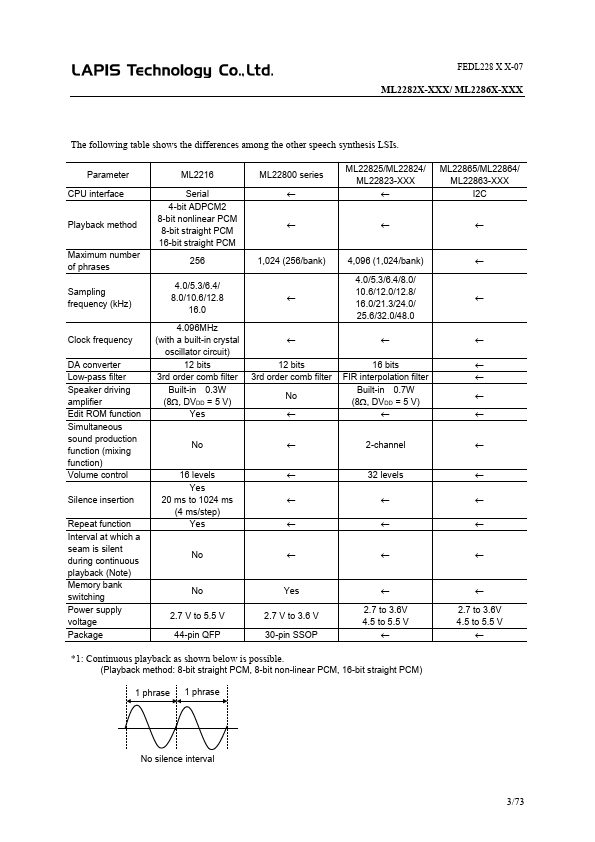

DESCRIPTION
ML2282X(ML22825/ML22824/ML22823-XXX) and ML2286X (ML22865/ML22864/ML22863-XXX) are voice synthesis LSIs with built-in P2ROM that stores speech data. These LSIs include edit ROM, ADPCM2 decoder, 16-bit DA converter, low pass filter and monaural speaker amplifier. Also, ML2282X supports the synchronous serial interface and ML22865/ML22864/ML22863 supports the I2C interface. By integrating all the functions required for voice output into a single chip, these LSIs can be more easily incorporated in pact portable devices.
- Built-in memory capacity and maximum vocal reproduction time:
(at the case of 4-bit ADPCM2 algorithm)
Product name
ROM capacity
Maximum vocal reproduction time (sec)
FS = 4.0 k Hz
FS = 8.0 k Hz
FS = 16 k Hz
ML22825-XXX/ML22865
16 Mbits
1,044
ML22824-XXX/ML22864
8 Mbits
ML22823-XXX/ML22863
4 Mbits
- Voice synthesis method:
4-bit ADPCM2
8-bit Nonlinear PCM
8-bit PCM , 16-bit PCM
Can be specified for each phrase.
- Sampling frequency(Fs):
4.0 / 5.3 / 6.4 / 8.0 / 10.6 / 12.0 / 12.8 / 16.0 / 21.3 / 24.0 / 25.6 / 32.0 /
48.0 k Hz fs can be specified for each phrase.
- Built-in low-pass filter and 16-bit DA converter
- Speaker driving amplifier:
0.7 W (when 8Ω , DVDD=5 V, Ta=25°C)
2ch analog input (internal: 1ch; external: 1ch)
- CPU mand interface:
3-wired serial clock-synchronized (ML2282X)
I2C interface...
