LB043WQ1-TD01 - LCD

This page provides the datasheet information for the LB043WQ1-TD01, a member of the LB043WQ1 LCD family.

Product Overview

LG

📥 Download Datasheet

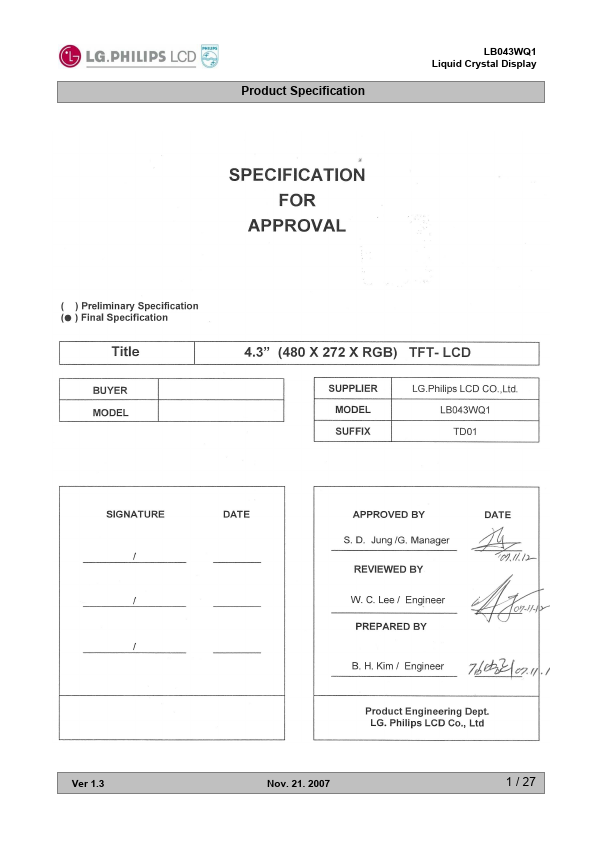

LB043WQ1-TD01 LCD by LG - Datasheet Preview — Datasheet preview – LB043WQ1-TD01

Datasheet Details

Part number	LB043WQ1-TD01
Manufacturer	LG
File Size	2.31 MB
Description	LCD
Datasheet	LB043WQ1-TD01 Datasheet

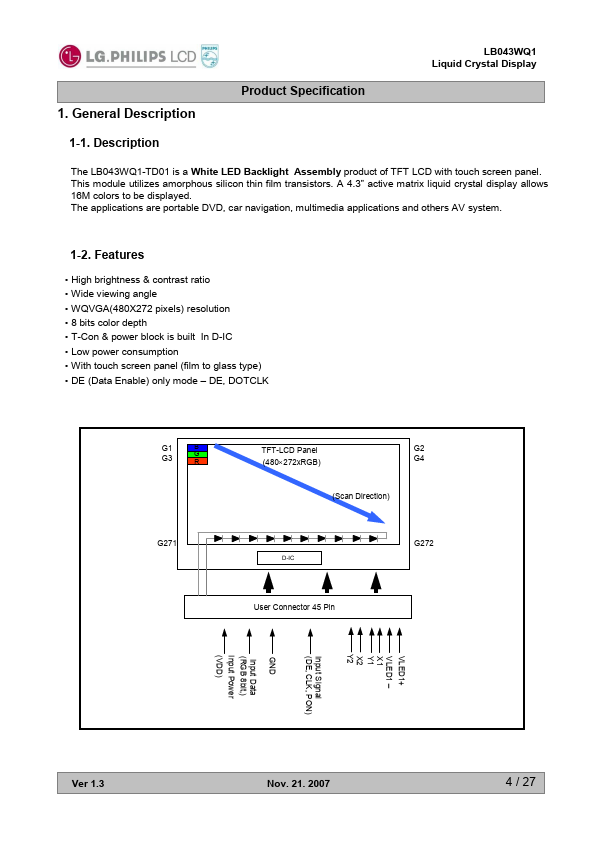

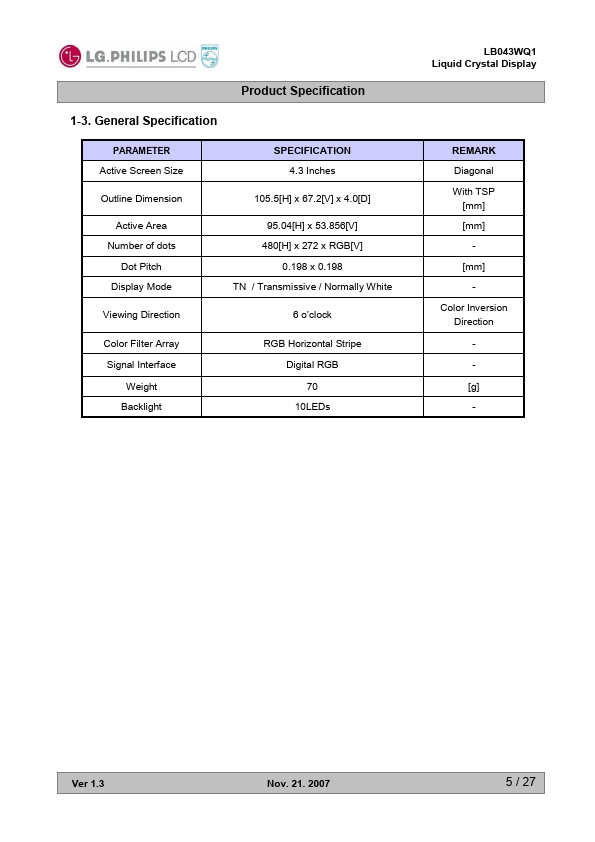

Additional preview pages of the LB043WQ1-TD01 datasheet.

LB043WQ1-TD01 Product details

Description

Jul.

24.

Features

High Brightness & contrast ratio.
Wide Viewing Angle.
WQVGA(480X272 pixels) resolution.
8 Bits color depth.
T-Con & Power Block Integrated In D-IC.
Low power consumption.
Touch screen panel (Film to Glass type).
DE (Data Enable) & SYNC mode.
DE, Vsync, Hsync, DOTCLK G1 G3 B G R TFT-LCD Panel (480´272xRGB) G2 G4 (Scan Direction) G271 D-IC G272 User Connector 45 Pin VLED1－ X1 Y1 X2 Y2 (VDD) Input Power In.
