LB043WQ4-TD01 Overview

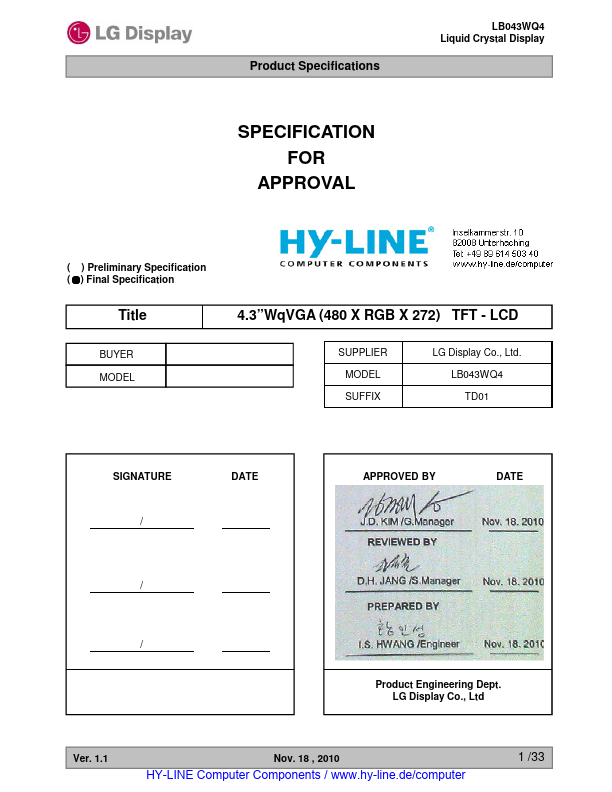

Product Specifications SPECIFICATION FOR APPROVAL LB043WQ4 Liquid Crystal Display ( ) Preliminary Specification ( ) Final Specification Title BUYER MODEL 4.3”WqVGA (480 X RGB X 272) TFT - LCD SUPPLIER MODEL SUFFIX LG Display Co., Ltd. LB043WQ4 TD01 SIGNATURE / / / DATE APPROVED BY DATE J.D. KIM /G.Manager REVIEWED BY Nov.

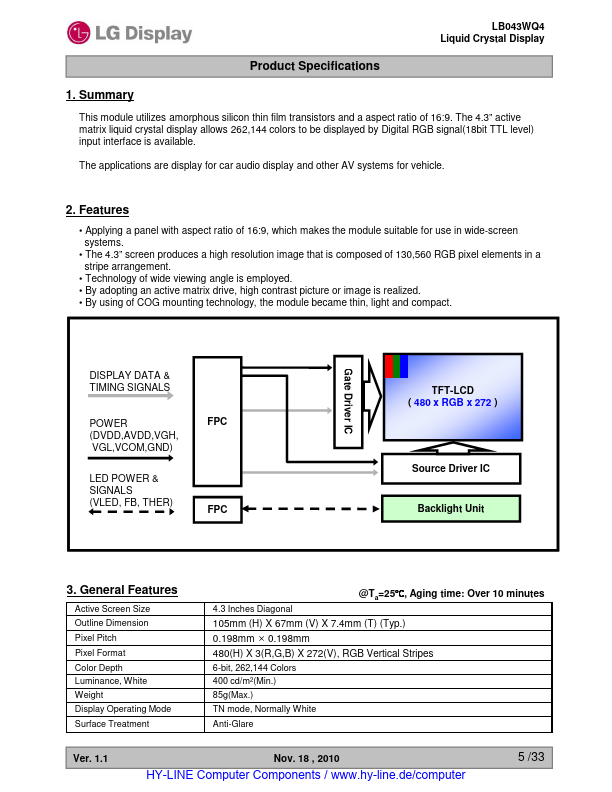

LB043WQ4-TD01 Key Features
- Applying a panel with aspect ratio of 16:9, which makes the module suitable for use in wide-screen systems
- The 4.3” screen produces a high resolution image that is posed of 130,560 RGB pixel elements in a stripe arrangement
- Technology of wide viewing angle is employed
- By adopting an active matrix drive, high contrast picture or image is realized
- By using of COG mounting technology, the module became thin, light and pact
LB043WQ4-TD01 Applications
- Applying a panel with aspect ratio of 16:9, which makes the module suitable for use in wide-screen systems
- The 4.3” screen produces a high resolution image that is posed of 130,560 RGB pixel elements in a stripe arrangement
