LB050WQ2-TD01 Datasheet TFT LCD Module

Manufacturer: LG Electronics

LB050WQ2-TD01 tft lcd module by LG Electronics - Datasheet Preview

Datasheet Details

Part number	LB050WQ2-TD01
Manufacturer	LG Electronics
File Size	795.80 KB
Description	TFT LCD Module
Download	LB050WQ2-TD01 Download (PDF)

General Description

Interface Connection Absolute Maximum Ratings Electrical Characteristics Optical Characteristics Mechanical Characteristics Color Input Data Reference Reliability Test Outline Dimension Packing www.DataSheet.net/ Page 3 4 6 8 9 15 18 19 20 21 22 23 Precautions Ver 1.0 Nov.

26.

2007 2 / 24 Datasheet pdf - http://www.DataSheet4U.co.kr/ LB050WQ2 Liquid Crystal Display Product Specification RECORD OF REVISIONS Revision No Revision Date 1.0 Nov.

Overview

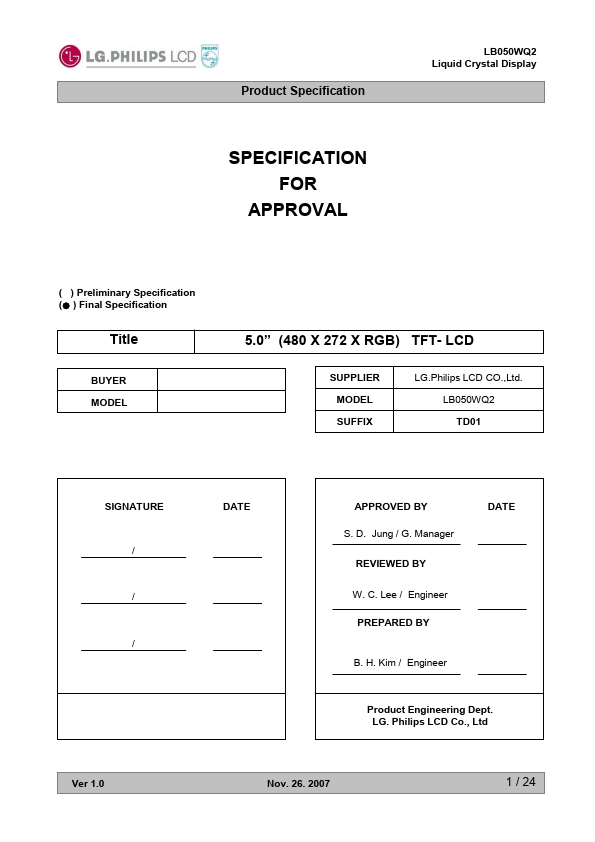

LB050WQ2 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification (● ) Final Specification Title BUYER MODEL 5.0” (480 X 272 X RGB) TFT- LCD SUPPLIER MODEL SUFFIX www.DataSheet.net/ LG.Philips LCD CO.,Ltd.

LB050WQ2 TD01 SIGNATURE DATE APPROVED BY S.

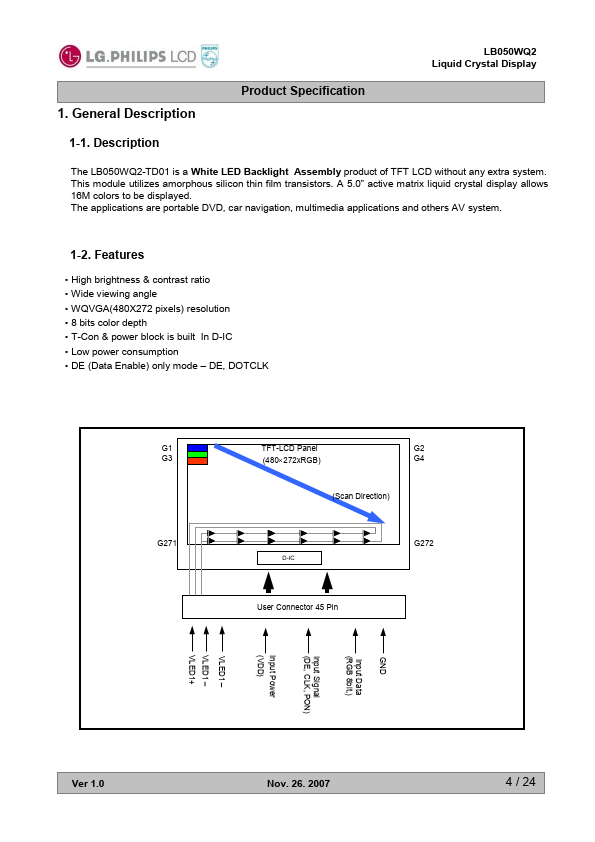

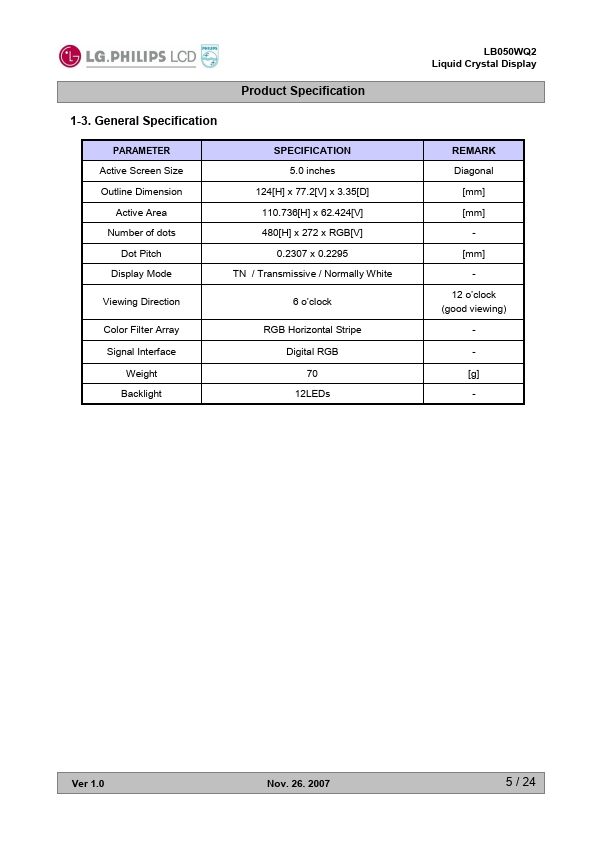

Key Features

High brightness & contrast ratio.
Wide viewing angle.
WQVGA(480X272 pixels) resolution.
8 bits color depth.
T-Con & power block is built In D-IC.
Low power consumption.
DE (Data Enable) only mode.
DE, DOTCLK www. DataSheet. net/ G1 G3 TFT-LCD Panel (480´272xRGB) G2 G4 (Scan Direction) G271 D-IC G272 User Connector 45 Pin VLED1+ (VDD) Input Power VLED1－ VLED1－ Input Signal (DE, CLK, PON) Input Data (RGB 8bit,).
