LB070WV8-SL02
Description

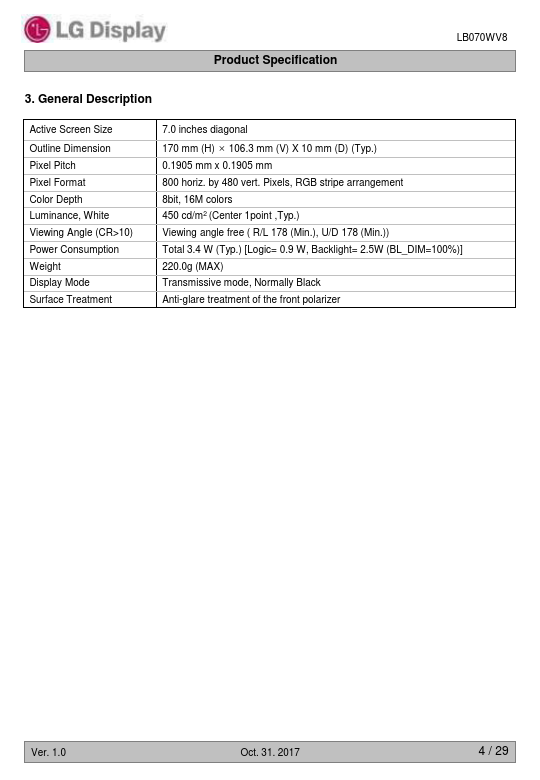

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment 7.0 inches diagonal 170 mm (H) × 106.3 mm (V) X 10 mm (D) (Typ.) 0.1905 mm x 0.1905 mm 800 horiz. Pixels, RGB stripe arrangement 8bit, 16M colors 450 cd/m2 (Center 1point ,Typ.) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.)) Total 3.4 W (Typ.) [Logic= 0.9 W, Backlight= 2.5W (BL_DIM=100%)] 220.0g (MAX) Transmissive mode, Normally Black Anti-glare treatment of the front polarizer Ver.

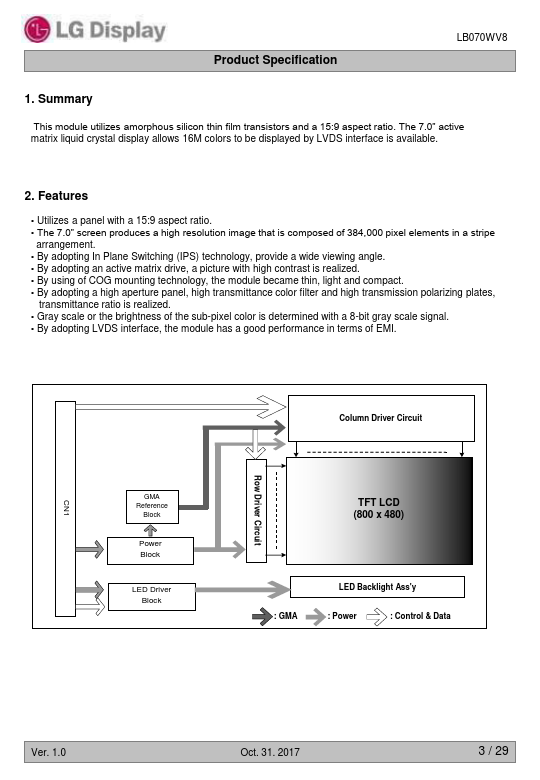

Key Features
- Utilizes a panel with a 15:9 aspect ratio
- The 7.0” screen produces a high resolution image that is posed of 384,000 pixel elements in a stripe arrangement
- By adopting In Plane Switching (IPS) technology, provide a wide viewing angle
- By adopting an active matrix drive, a picture with high contrast is realized
- By using of COG mounting technology, the module became thin, light and pact
- By adopting a high aperture panel, high transmittance color filter and high transmission polarizing plates, transmittance ratio is realized
- Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal
- GMA LED Backlight Ass'y : Power : Control & Data Ver. 1.0 Oct
