Download LB310FTM-SPA2 Datasheet PDF

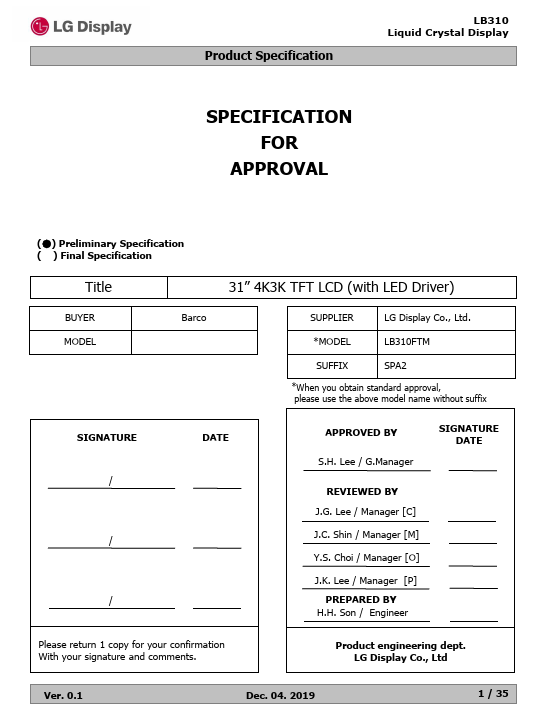

LB310FTM-SPA2 page 2
Page 2

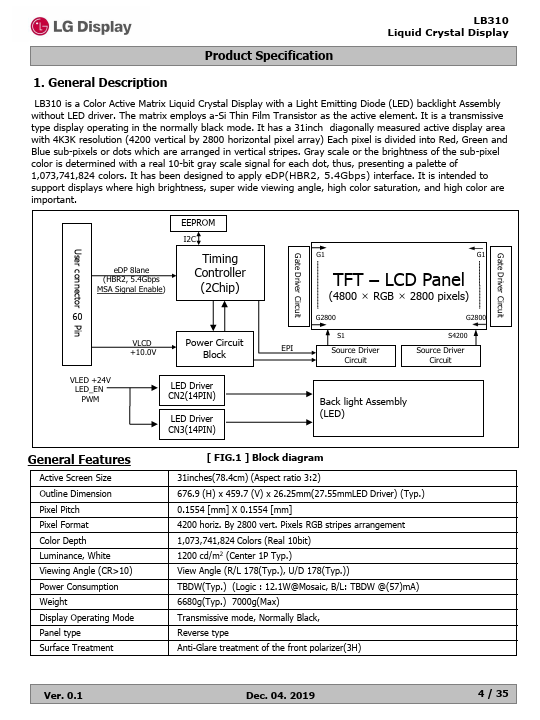

LB310FTM-SPA2 page 3
Page 3

LB310FTM-SPA2 Description

LB310 is a Color Active Matrix Liquid Crystal Display with a Light Emitting Diode (LED) backlight Assembly without LED driver. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally black mode.
