LC185EXN-SCA1 - WXGA TFT LCD

Description

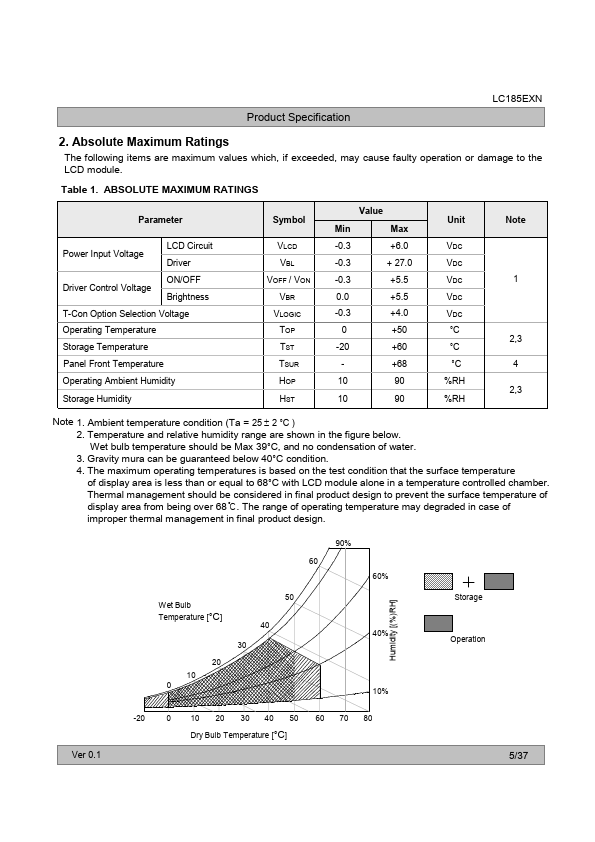

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC Environment PA

Features

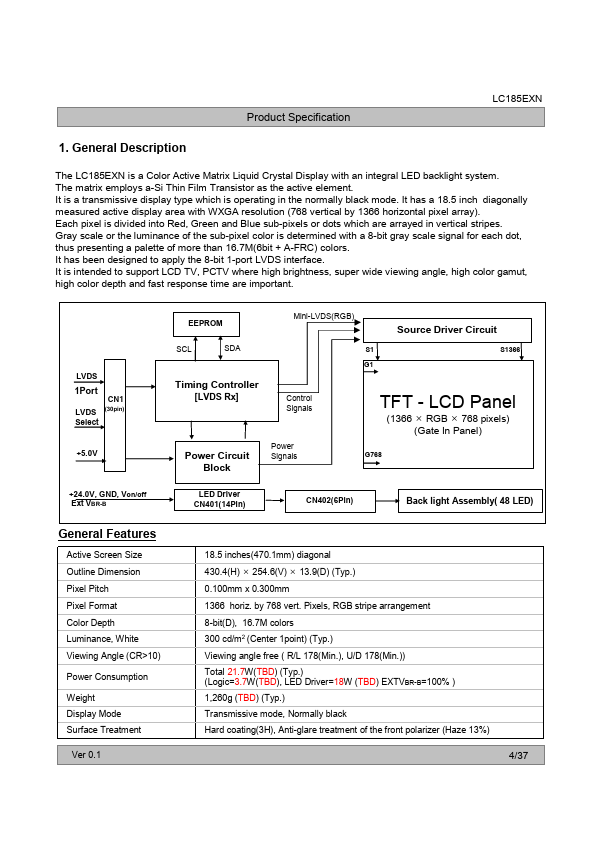

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment Ver 1.0 18.5 inches(470.1mm) diagonal 430.4(H) × 254.6(V) × 13.9(D) (Typ. ) 0.100mm x 0.300mm 1366 horiz. by 768 vert. Pixels, RGB stripe arrangement 8-bit(D), 16.7M colors 300 cd/m2 (Center 1point) (Typ. ) Viewing angle free ( R/L 178(Min. ), U/D 178(Min. )) Total 21.1W (Typ. ) (Logic=3.1W, LED Driver=18W EXTVBR-B=100% ) 1,260g (Typ.

📥 Download Datasheet

Datasheet preview – LC185EXN-SCA1

Datasheet Details

Part number LC185EXN-SCA1
Manufacturer LG
File Size 1.05 MB
Description WXGA TFT LCD
Datasheet download datasheet LC185EXN-SCA1 Datasheet
Additional preview pages of the LC185EXN-SCA1 datasheet.

📁 Similar Datasheet

  • LC185TT1A - TFT-LCD OPEN CELL (PANDA)
  • LC185TT2A - TFT-LCD OPEN CELL (PANDA)
  • LC18 - 1500 Watt Low Capacitance Transient Voltage Suppressor (Microsemi)
  • LC18A - 1500 Watt Low Capacitance Transient Voltage Suppressor (Microsemi)
  • LC1-D0900xx - Contactors (Telemecanique)
  • LC1-D0900xx - Contactors (Telemecanique)
  • LC1-D0901xx - Contactors (Telemecanique)
  • LC1-D0901xx - Contactors (Telemecanique)
  • LC1-D0910xx - Contactors (Telemecanique)
  • LC1-D0910xx - Contactors (Telemecanique)
Other Datasheets by LG

Full PDF Text Transcription

Click to expand full text

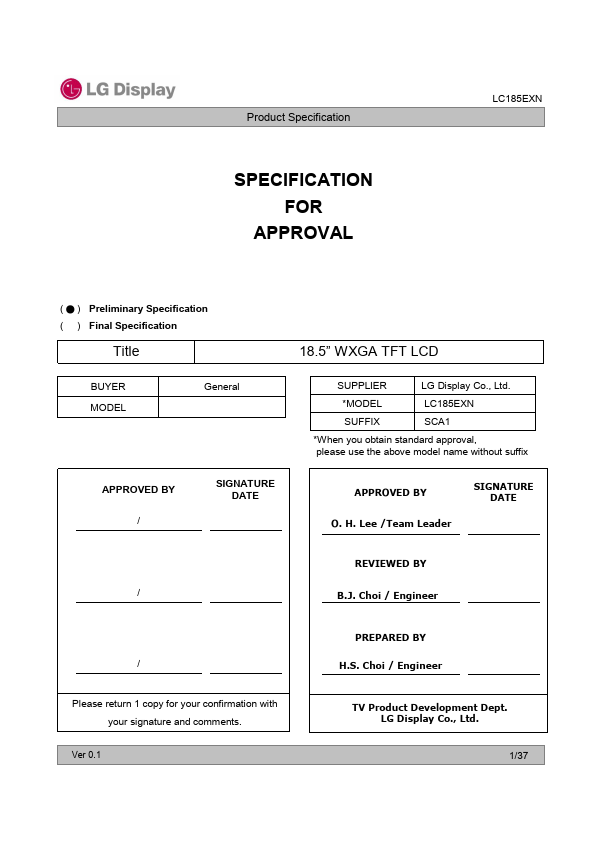

LC185EXN Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification ( ● ) Final Specification Title BUYER MODEL General 18.5” WXGA TFT LCD SUPPLIER *MODEL SUFFIX LG Display Co., Ltd. LC185EXN SCA1(RoHS Verified) *When you obtain standard approval, please use the above model name without suffix SIGNATURE DATE SIGNATURE DATE APPROVED BY / APPROVED BY H.S. SONG /Team Leader REVIEWED BY / O.H. LEE / Project Leader PREPARED BY / B.J. CHOI / Engineer Please return 1 copy for your confirmation with your signature and comments. Ver 1.0 TV Product Development Dept. LG Display Co., Ltd.
