LC320DXY-SKA9 - WXGA TFT LCD

Description

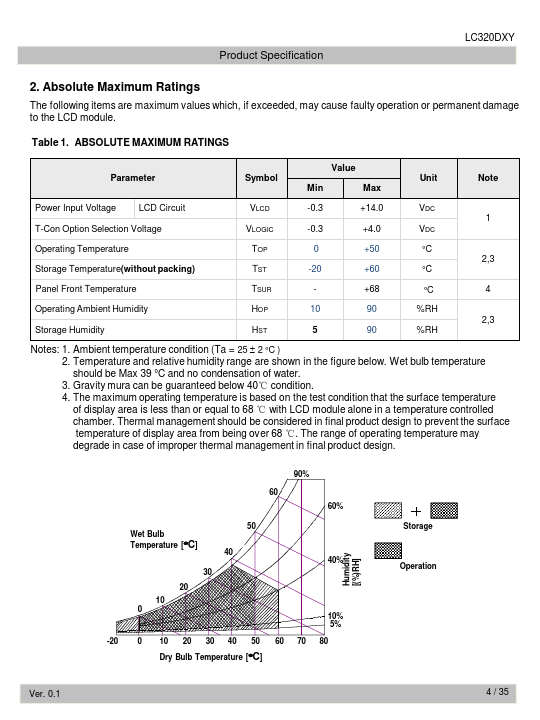

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATION INTRA INTERFACE SIGNAL SPECIFICATION COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS MECHANICAL DIMENSION B

Features

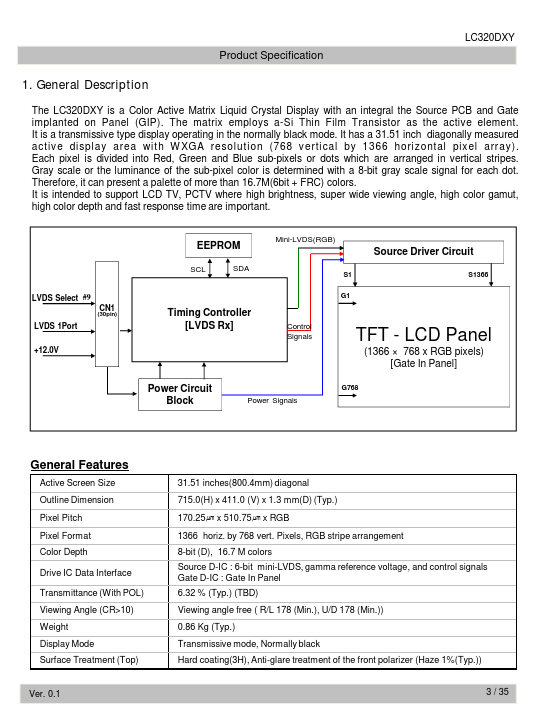

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Drive IC Data Interface Transmittance (With POL) Viewing Angle (CR>10) Weight Display Mode Surface Treatment (Top) Ver. 0.1 31.51 inches(800.4mm) diagonal 715.0(H) x 411.0 (V) x 1.3 mm(D) (Typ. ) 170.25༁ x 510.75༁ x RGB 1366 horiz. by 768 vert. Pixels, RGB stripe arrangement 8-bit (D), 16.7 M colors Source D-IC : 6-bit mini-LVDS, gamma reference voltage, and control signals Gate D-IC : Gate In Panel 6.32 % (Typ. ) (TBD) Vie.

📥 Download Datasheet

Datasheet preview – LC320DXY-SKA9

Datasheet Details

Part number LC320DXY-SKA9
Manufacturer LG
File Size 0.99 MB
Description WXGA TFT LCD
Datasheet download datasheet LC320DXY-SKA9 Datasheet
Additional preview pages of the LC320DXY-SKA9 datasheet.

📁 Similar Datasheet

Other Datasheets by LG

Full PDF Text Transcription

Click to expand full text
Product Specification SPECIFICATION FOR APPROVAL LC320DXY ( ̻ ) Preliminary Specification ( ) Final Specification Title BUYER MODEL General 32.0” WXGA TFT LCD SUPPLIER *MODEL SUFFIX LG.Display Co., Ltd. LC320DXY SKA9 (RoHS Verified) APPROVED BY / SIGNATURE DATE / / Please return 1 copy for your confirmation with your signature and comments. Ver. 0.1 APPROVED BY SIGNATURE DATE Yoon San Park / Team Leader REVIEWED BY Dong Min Lee/ Project Leader PREPARED BY Sung Hun Choi/ Engineer TV Products Development Dept. LG. Display LCD Co.
Published: |
