LC320EUD-SCA1 Datasheet LCD Module

Manufacturer: LG Electronics

📥 Download Datasheet

General Description

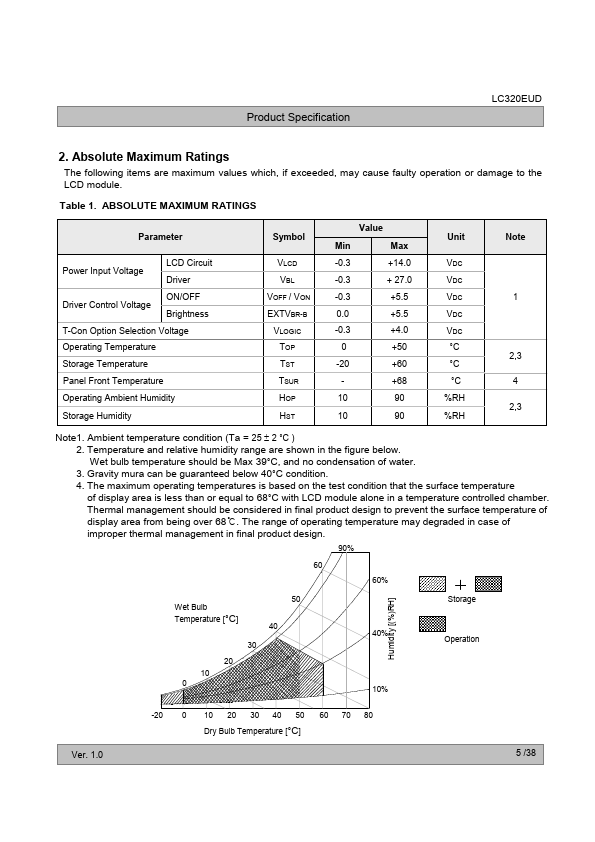

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATIONS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC ENVIRONMENT PACKING INFORMATION OF LCM LABEL PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS FOR PROTECTION FILM ITEM Page 1 2 3 4 5 6 6 8 11 12 15 16 18 22 25 26 26 26 26 27 27 27 28 28 28 29 29 29 29 2 /38 www.DataSheet4U.net www.DataSheet4U.net LC320EUD Product Specification RECORD OF REVISIONS Revision No.

1.0 Revision Date Feb, 25, 2010 Page Final Specifications Description Ver.

1.0 3 /38 www.DataSheet4U.net www.DataSheet4U.net LC320EUD Product Specification 1.

Overview

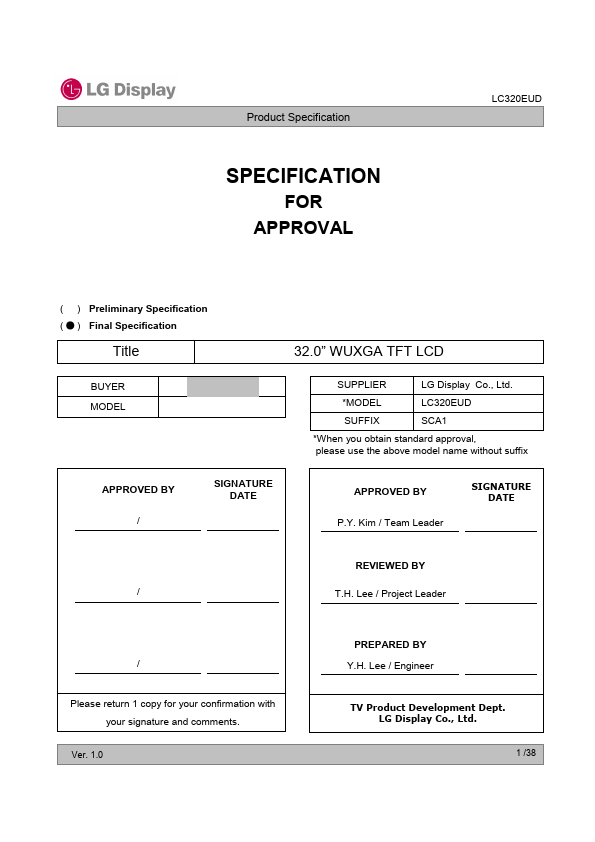

www.DataSheet4U.net LC320EUD Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification ( ● ) Final Specification Title BUYER MODEL General 32.0” WUXGA TFT LCD SUPPLIER *MODEL SUFFIX LG Display Co., Ltd.

LC320EUD SCA1 *When you obtain standard approval, please use the above model name without suffix SIGNATURE DATE APPROVED BY / APPROVED BY P.Y.

Kim / Team Leader SIGNATURE DATE REVIEWED BY / T.H.

Key Features

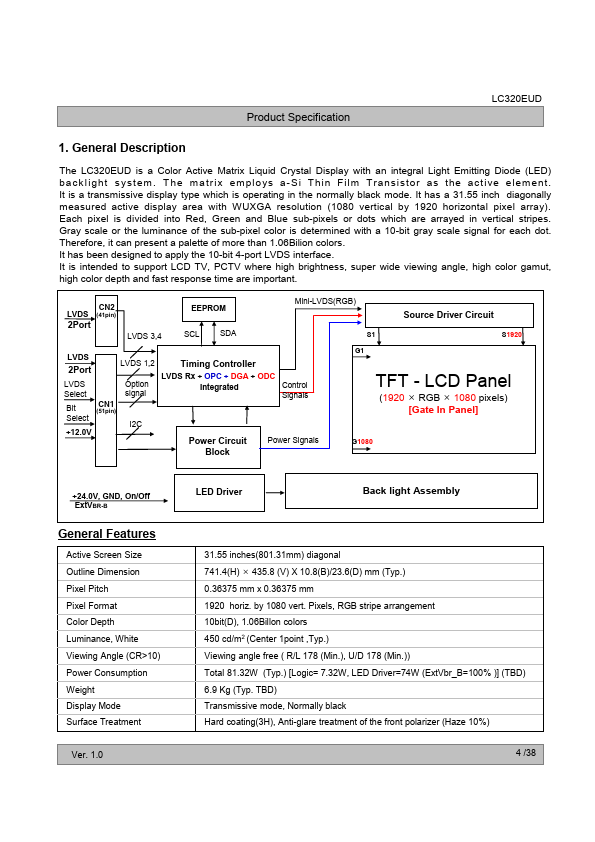

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment 31.55 inches(801.31mm) diagonal 741.4(H) × 435.8 (V) X 10.8(B)/23.6(D) mm (Typ. ) 0.36375 mm x 0.36375 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 10bit(D), 1.06Billon colors 450 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Total 81.32W (Typ. ) [Logic= 7.32W, LED Driver=74W (ExtVb.
