LC320W01-SLA1 Datasheet PDF - LG LCD Specs

LC320W01-SLA1 - LCD

Datasheet Summary

Description

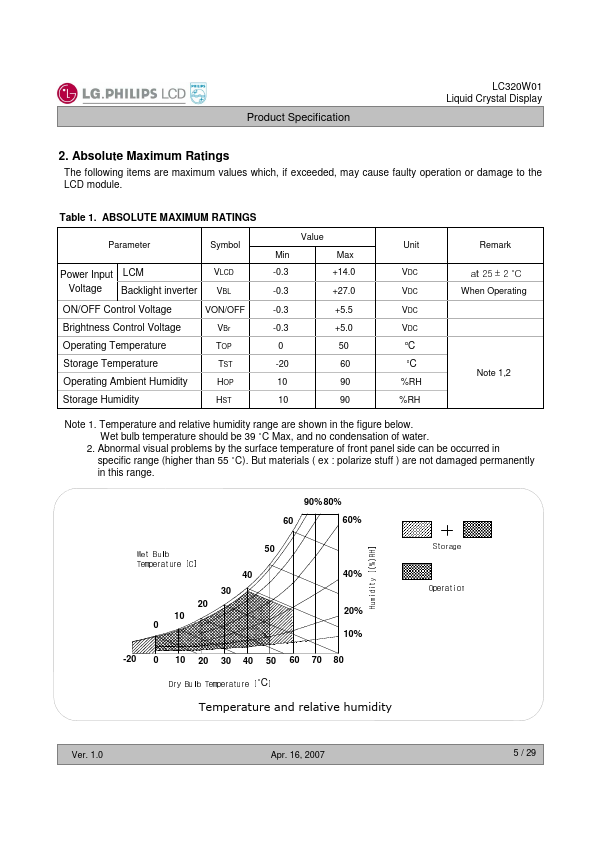

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING

Features

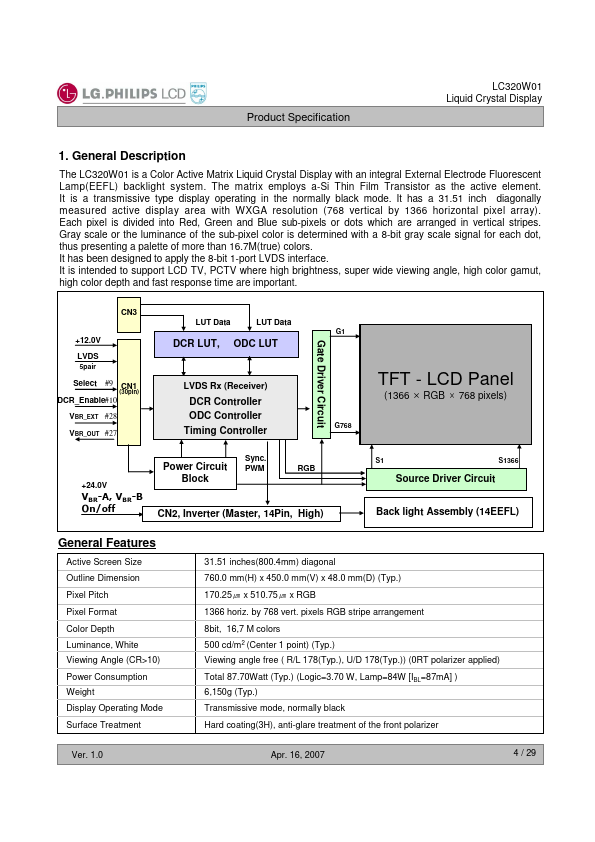

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White 31.51 inches(800.4mm) diagonal 170.25༁ x 510.75༁ x RGB 8bit, 16,7 M colors 760.0 mm(H) x 450.0 mm(V) x 48.0 mm(D) (Typ. ) 1366 horiz. by 768 vert. pixels RGB stripe arrangement 500 cd/m2 (Center 1 point) (Typ. ) Viewing Angle (CR>10) Power Consumption Weight Viewing angle free ( R/L 178(Typ. ), U/D 178(Typ. )) (0RT polarizer applied) Total 113.70Watt (Typ. ) (Logic=3.70 W, Lamp=110W [IBL=112mA] ) 6,050g (Ty.

Datasheet Details

Part number	LC320W01-SLA1
Manufacturer	LG
File Size	1.03 MB
Description	LCD
Datasheet	LC320W01-SLA1 Datasheet
Additional preview pages of the LC320W01-SLA1 datasheet.

📁 Similar Datasheet

LC320W01 - TFT LCD (LG Philips)

LC320EM2 - LCD TV (Emerson)

LC320EM2 - SERVICE MANUAL (Funai Electric)

LC320EUA-AEM1 - LCD Module (RAKEN)

LC320SS2 - SERVICE MANUAL (Funai Electric)

LC320TU2A - TFT-LCD OPEN CELL (PANDA)

LC321664AJ - 1 MEG (65536 words X 16 bits) DRAM (Sanyo)

LC321664AM - 1 MEG (65536 words X 16 bits) DRAM (Sanyo)

LC321664AT-80 - 1 MEG (65536 words X 16 bits) DRAM (Sanyo)

LC321664BJ - 1 MEG (65536 words X 16 bits) DRAM (Sanyo)

Full PDF Text Transcription

Click to expand full text

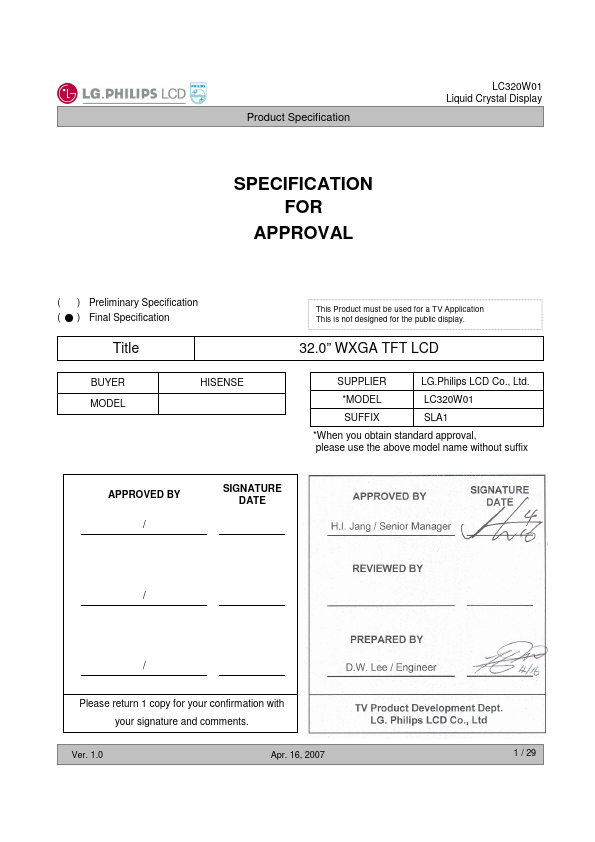

www.DataSheet.co.kr Product Specification LC320W01 Liquid Crystal Display SPECIFICATION FOR APPROVAL ( ̻ ) Preliminary Specification ( ) Final Specification This Product must be used for a TV Application This is not designed for the public display. Title BUYER MODEL General 32.0” WXGA TFT LCD SUPPLIER *MODEL SUFFIX LG.Philips LCD Co., Ltd. LC320W01 SLA1 *When you obtain standard approval, please use the above model name without suffix SIGNATURE DATE SIGNATURE DATE APPROVED BY / APPROVED BY H.I. Jang / Senior Manager REVIEWED BY / PREPARED BY / Please return 1 copy for your confirmation with your signature and comments. D.W. Lee / Engineer TV Product Development Dept. LG. Philips LCD Co., Ltd 1 / 49 Ver. 0.0 Feb. 6, 2007 Datasheet pdf - http://www.DataSheet4U.net/ www.
