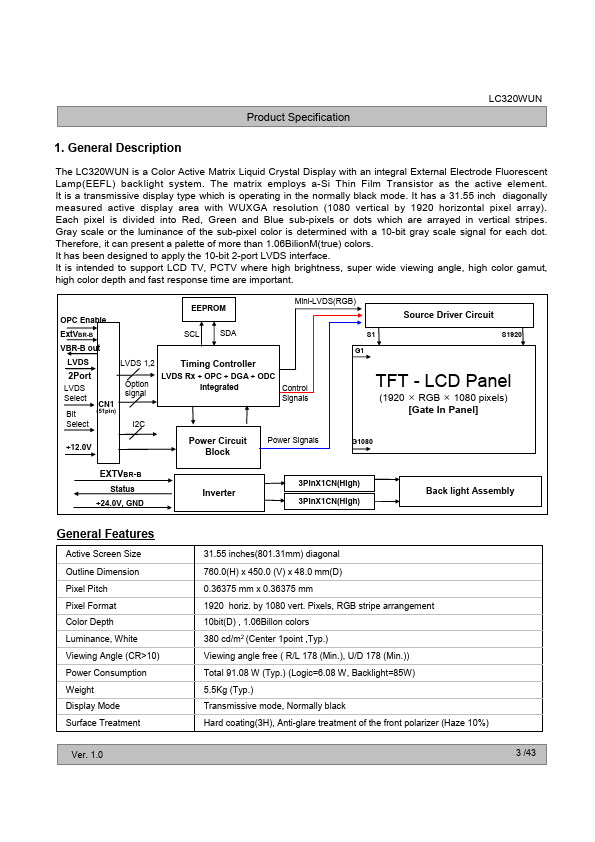

Description The LC320WUN is a Color Active Matrix Liquid Crystal Display with an integral External Electrode Fluorescent Lamp(EEFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive display type which is operating in the normally black mode. It has a 31.55 inch diagonally measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes. Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot. Therefore, it can present a palette of more than 1.06Bilion M(true) colors. It has been designed to apply the 10-bit 2-port LVDS interface. It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important. OPC Enable EEPROM Mini-LVDS(RGB) Source Driver Circuit Ext VBR-B SCL SDA S1 S1920 VBR-B out G1 LVDS LVDS 1,2 Timing Controller 2Port LVDS Select Bit CN1 (51pin) Option signal LVDS Rx + OPC + DGA + ODC Integrated Control Signals Select I2C - LCD Panel (1920 Ý RGB Ý 1080 pixels) [Gate In Panel] +12.0V Power Circuit Block Power Signals G1080 EXTVBR-B Status +24.0V, GND Inverter 3Pin X1CN(High) 3Pin X1CN(High) Back light Assembly General...
