LC550DPY-SHP1
Description

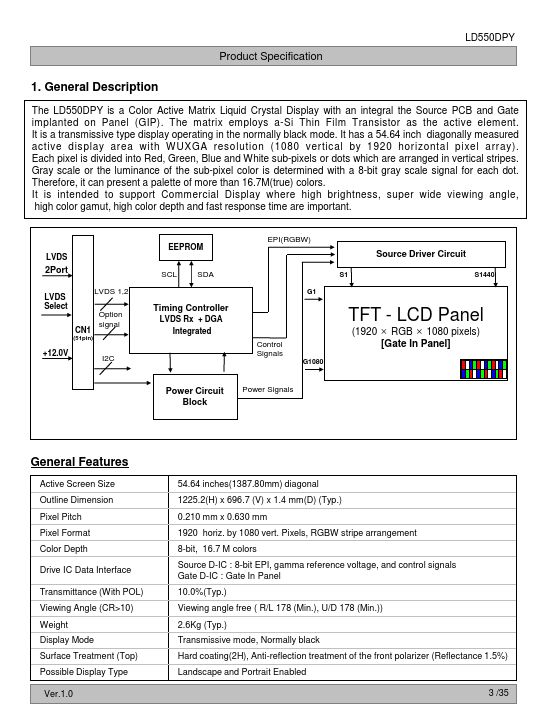

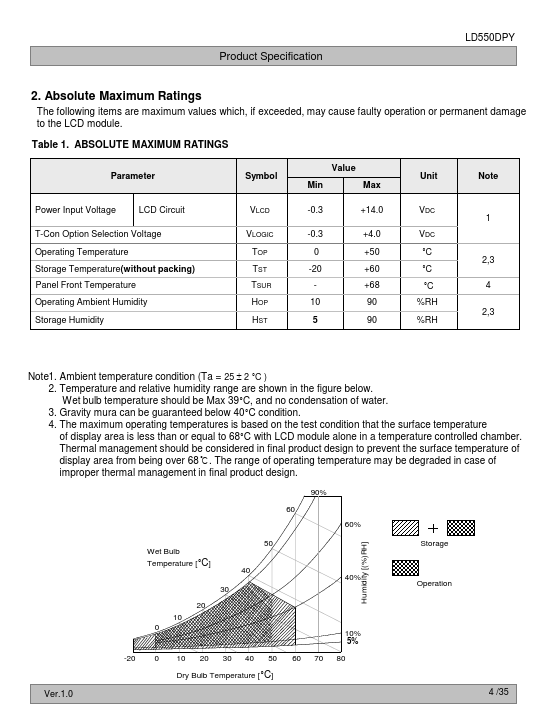

The LD550DPY is a Color Active Matrix Liquid Crystal Display with an integral the Source PCB and Gate implanted on Panel (GIP). The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally black mode. It has a 54.64 inch diagonally measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array). Each pixel is divided into Red, Green, Blue and White sub-pixels or dots which are arranged in vertical stripes. Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot. Therefore, it can present a palette of more than 16.7M(true) colors. It is intended to support mercial Display where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important.
LVDS 2Port
LVDS
LVDS 1,2
Select
Option signal CN1
(51pin)
+12.0V
I2C
EEPROM
Timing Controller LVDS Rx + DGA...
