LD420EUN-UHA3
LD420EUN-UHA3 is WUXGA TFT LCD manufactured by LG Electronics.
Product Specification

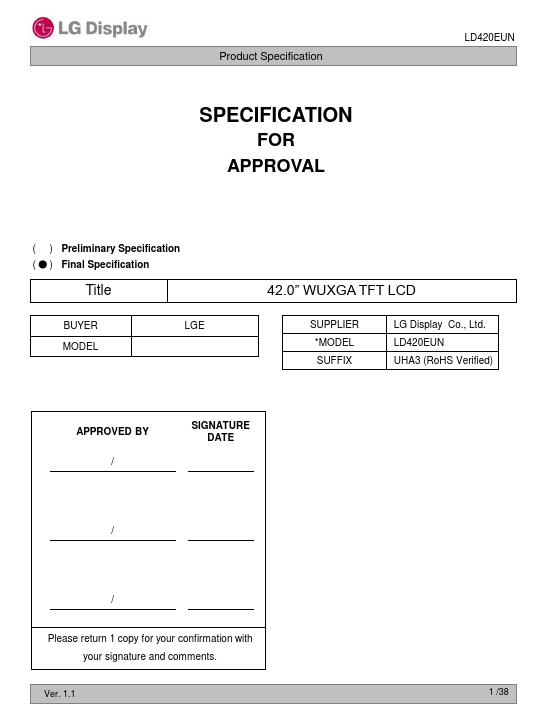

SPECIFICATION
FOR APPROVAL
LD420EUN
( ) Preliminary Specification (
- ) Final Specification
Title
BUYER MODEL
42.0” WUXGA TFT LCD
SUPPLIER
- MODEL SUFFIX
LG Display Co., Ltd. LD420EUN UHA3 (RoHS Verified)
APPROVED BY /
SIGNATURE DATE
/
/
Please return 1 copy for your confirmation with your signature and ments.
Ver. 1.1
1 /38
Product Specification
LD420EUN

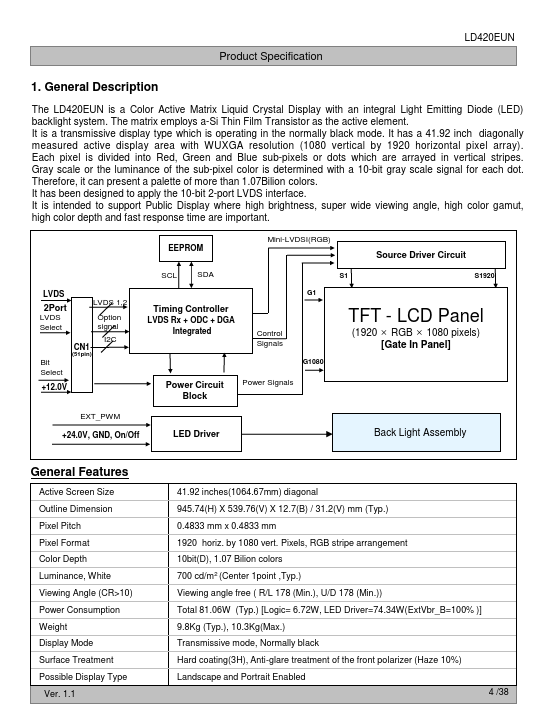

1. General Description
The LD420EUN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive display type which is operating in the normally black mode....
