LD550EQE-FPA1 Datasheet QWUXGA TFT LCD

Manufacturer: LG Electronics

📥 Download Datasheet

General Description

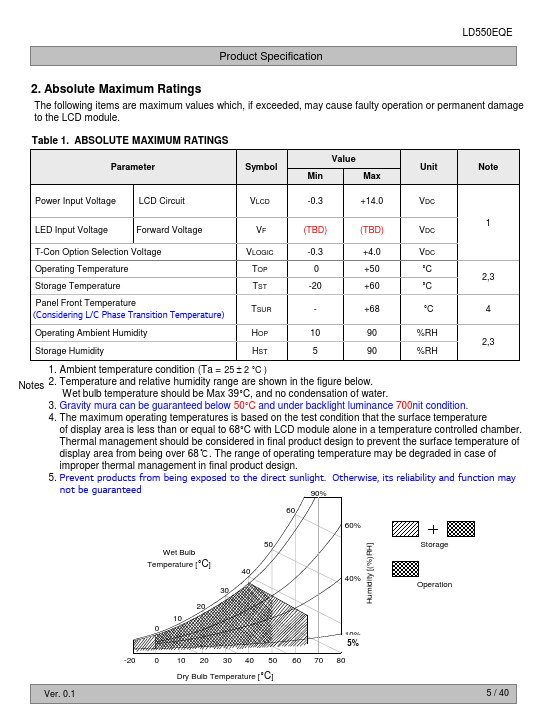

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS V by Oone SIGNAL SPECIFICATIONS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS Safety ENVIRONMENT PACKING INFORMATION OF LCM LABEL PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS FOR PROTECTION FILM Appropriate Condition for Commercial Display Ver.

1.1 LD550EQE Page 1 2 3 4 5 6 6 8 11 12 14 15 16 20 23 24 24 24 25 25 25 26 26 26 27 27 27 27 28 2 /40 Product Specification LD550EQE RECORD OF REVISIONS Revision No.

Revision Date 0.1 July, 28, 2020 1.0 Nov, 6, 2020 1.1 Nov, 25, 2020 Page 4,6 4,19 4 15 20,21 29 36 7 8 20 Description Preliminary Specification (First Draft) Delete “TBD” Updated input current, power consumption Updated Weight Updated Possible Display Type Updated Color Coordinates Updated Drawing Updated LCM Label Updated APPENDIX- VI Final specification Updated Life Time spec.

Overview

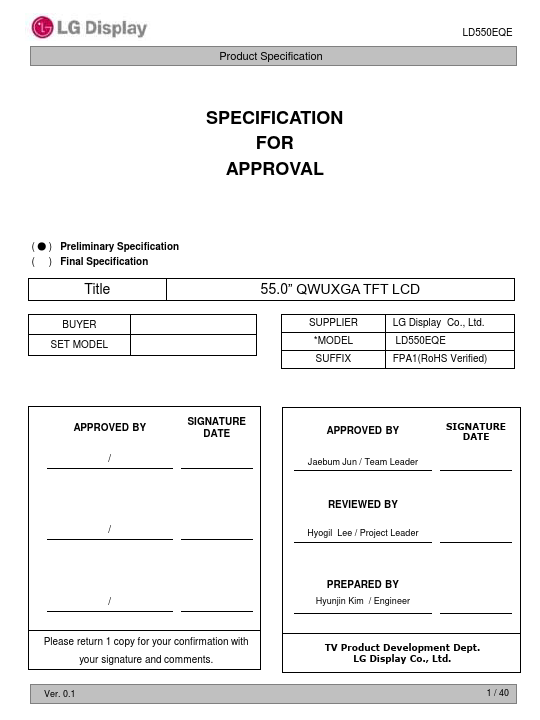

Product Specification SPECIFICATION FOR APPROVAL LD550EQE ( ) Preliminary Specification ( ● ) Final Specification Title BUYER SET MODEL Common 55.0” QWUXGA TFT LCD SUPPLIER *MODEL SUFFIX LG Display Co., Ltd.

LD550EQE FPA1(RoHS Verified) APPROVED BY / SIGNATURE DATE / / Please return 1 copy for your confirmation with your signature and comments.

Ver.

Key Features

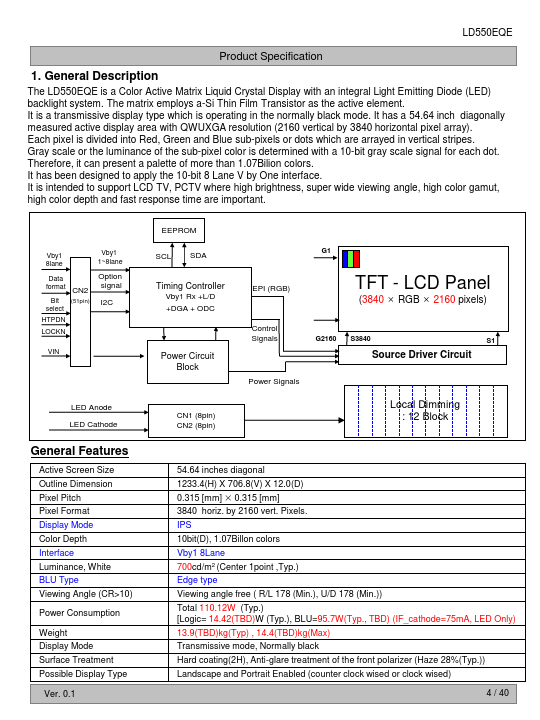

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Display Mode Color Depth Interface Luminance, White BLU Type Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment Possible Display Type Ver. 1.1 CN1 (8pin) CN2 (8pin) Back light Assembly 54.64 inches diagonal 1233.4(H) X 706.8(V) X 12.0(D) 0.315 [mm] × 0.315 [mm] 3840 horiz. by 2160 vert. Pixels, RGB stripe arrangement. IPS 10bit(D), 1.07Billon colors Vby1 8Lane 700cd/m2 (Center 1point ,Typ. ) Edge type View.
