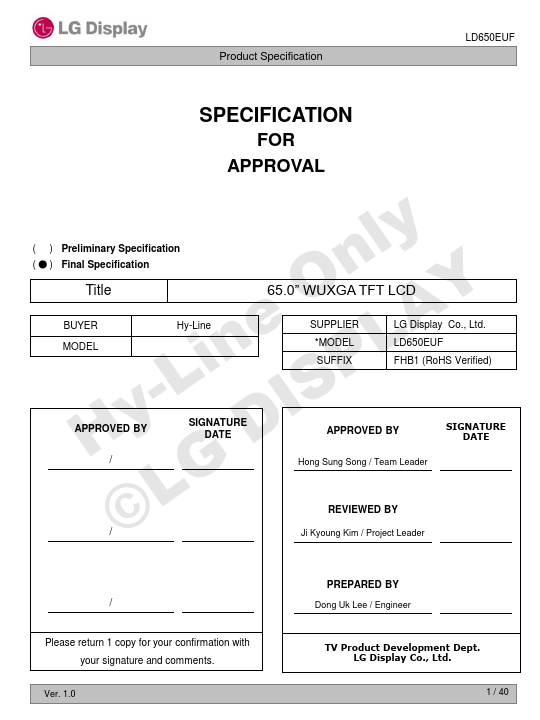

LD650EUF-FHB1
Description

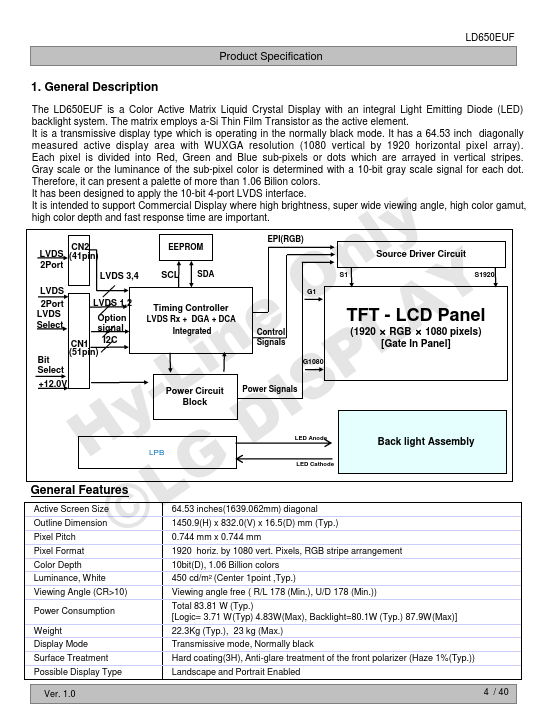

The LD650EUF is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 64.53 inch diagonally measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 10-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 1.06 Bilion colors.
It has been designed to apply the 10-bit 4-port LVDS interface.
It is intended to support mercial Display where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important. ly CN2
LVDS (41pin) 2Port n LVDS 3,4
EEPROM SCL...
