LP097X02-SLA3 Datasheet LCD

Manufacturer: LG Electronics

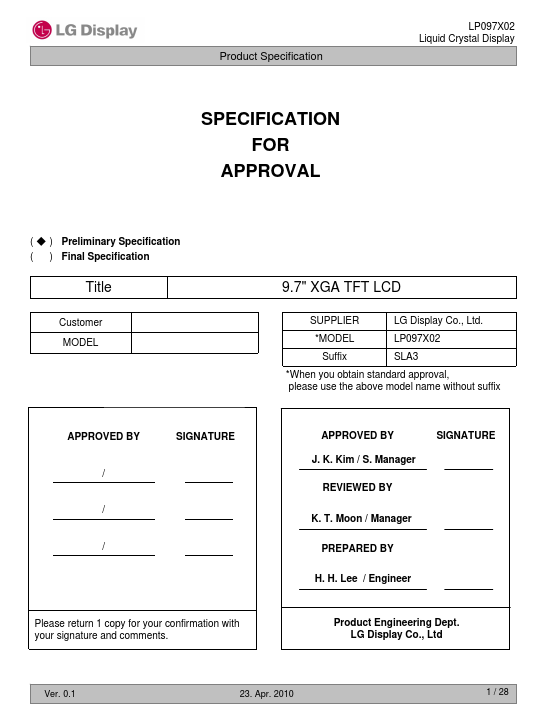

Overview: www.DataSheet.co.kr LP097X02 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ◆ ) Preliminary Specification ( ) Final Specification Title Customer MODEL 9.7" XGA TFT LCD SUPPLIER *MODEL Suffix LG Display Co., Ltd. LP097X02 SLA3 *When you obtain standard approval, please use the above model name without suffix APPROVED BY SIGNATURE APPROVED BY J. K. Kim / S. Manager SIGNATURE / REVIEWED BY / K. T. Moon / Manager PREPARED BY H. H. Lee / Engineer / Please return 1 copy for your confirmation with your signature and comments. Product Engineering Dept. LG Display Co., Ltd Ver. 0.1 23. Apr. 2010 1 / 28 Datasheet pdf - http://www.DataSheet4U.net/ www.DataSheet.co.

📥 Download Datasheet

LP097X02-SLA3 lcd by LG Electronics - Datasheet Preview

Datasheet Details

Part number	LP097X02-SLA3
Manufacturer	LG Electronics
File Size	595.78 KB
Description	LCD
Download	LP097X02-SLA3 Download (PDF)

General Description

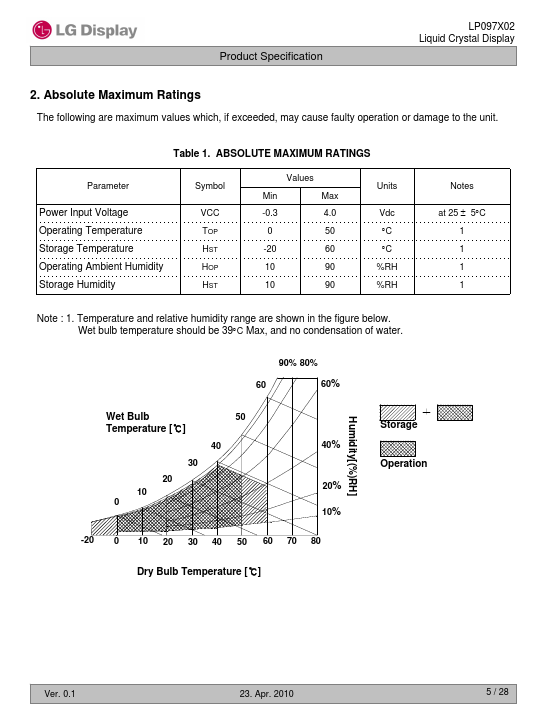

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS LVDS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX.

Enhanced Extended Display Identification Data 23 23 24 26 22 22 13 17 21 6 7 8 10 10 11 ITEM Page 1 2 3 4 5 Ver.

0.1 23.

Key Features

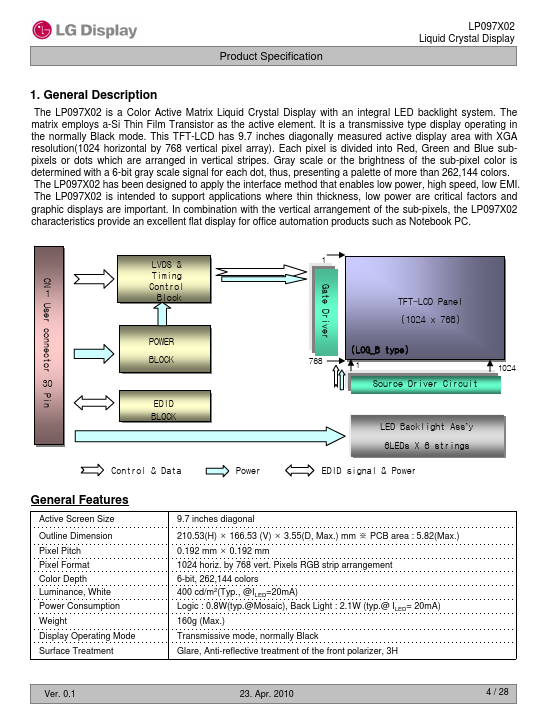

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment 9.7 inches diagonal 210.53(H) × 166.53 (V) × 3.55(D, Max. ) mm ※ PCB area : 5.82(Max. ) 0.192 mm × 0.192 mm 1024 horiz. by 768 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 400 cd/m2(Typ. , @ILED=20mA) Logic : 0.8W(typ. @Mosaic), Back Light : 2.1W (typ. @ ILED= 20mA) 160g (Max. ) Transmissive mode, normally Black Glare, Anti-reflective.
