LP125WH2-SLB3 Datasheet HD TFT LCD

Manufacturer: LG Electronics

📥 Download Datasheet

General Description

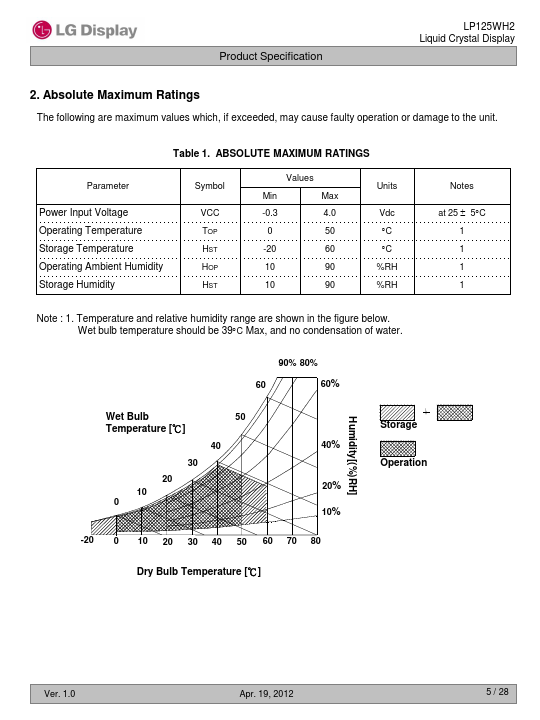

2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATIONS 3-1 ELECTRICAL CHARACTREISTICS 3-2 INTERFACE CONNECTION 3-3 LVDS SIGNAL TIMING SPECIFICATIONS 3-4 SIGNAL TIMING SPECIFICATIONS 3-5 SIGNAL TIMING WAVEFORMS 3-6 COLOR INPUT DATA REFERNECE 3-7 POWER SEQUENCE 4 OPTICAL SFECIFICATIONS 5 MECHANICAL CHARACTERISTICS 6 RELIABLITY 7 7-1 INTERNATIONAL STANDARDS SAFETY 7-2 EMC 8 8-1 PACKING DESIGNATION OF LOT MARK 8-2 PACKING FORM 8-3 Label Description 9 PRECAUTIONS A APPENDIX.

Enhanced Extended Display Identification Data Ver.

1.0 Apr.

Overview

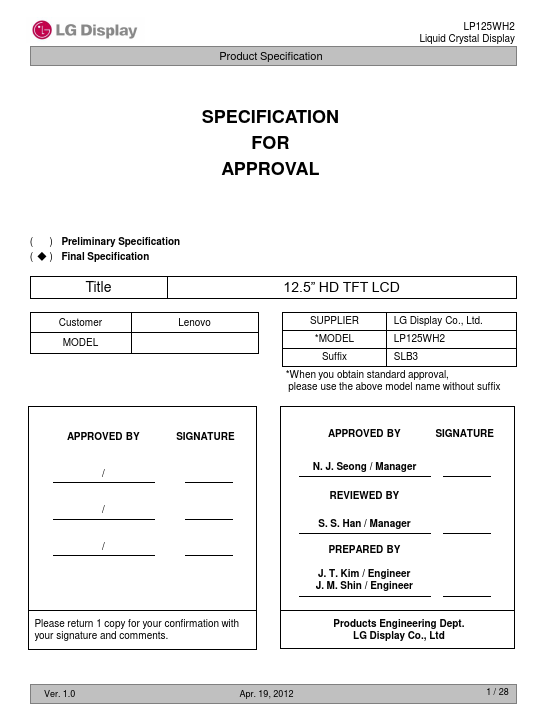

Global LCD Panel Exchange Center www.panelook.com Product Specification SPECIFICATION FOR APPROVAL LP125WH2 Liquid Crystal Display ( ) Preliminary Specification ( ୛ ) Final Specification Title Customer MODEL Lenovo APPROVED BY / / / SIGNATURE Please return 1 copy for your confirmation with your signature and comments.

12.5” HD TFT LCD SUPPLIER LG Display Co., Ltd.

*MODEL LP125WH2 Suffix SLB3 *When you obtain standard approval, please use the above model name without suffix APPROVED BY SIGNATURE N.

Key Features

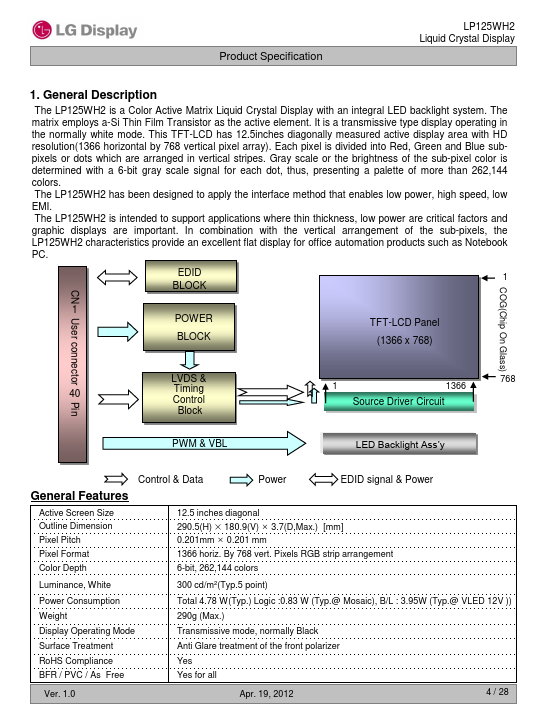

  • Power EDID signal & Power Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth 12.5 inches diagonal 290.5(H) ϧ 180.9(V) Ý 3.7(D,Max. ) [mm] 0.201mm Ý 0.201 mm 1366 horiz. By 768 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors Luminance, White 300 cd/m2(Typ.5 point) Power Consumption Weight Display Operating Mode Surface Treatment RoHS Compliance BFR / PVC / As Free Total 4.78 W(Typ. ) Logic :0.83 W (Typ. @ Mosaic), B/L : 3.95W (Typ. @ VLED 12V )) 290g (Max. ) Tra.
