LP154WX4-TLC8 - Liquid Crystal Display

Description

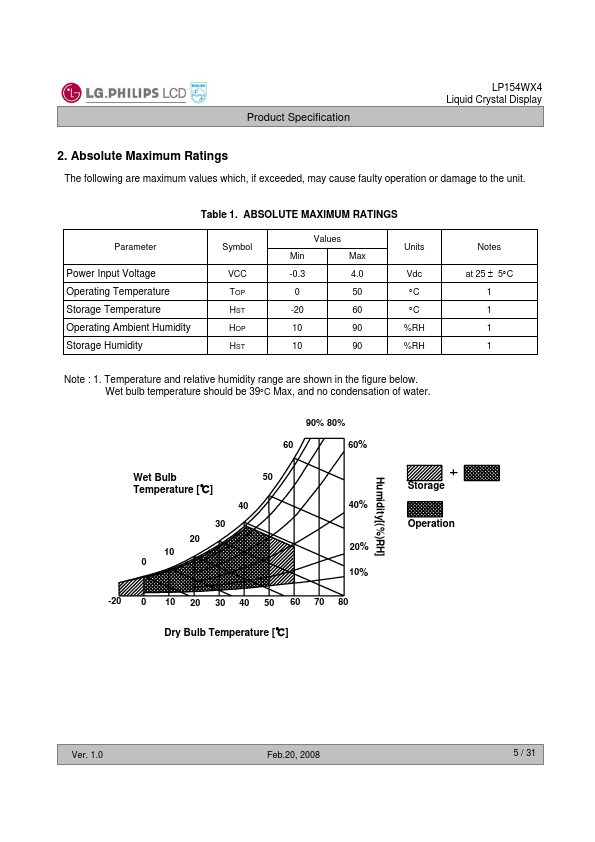

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS LVDS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIO

Features

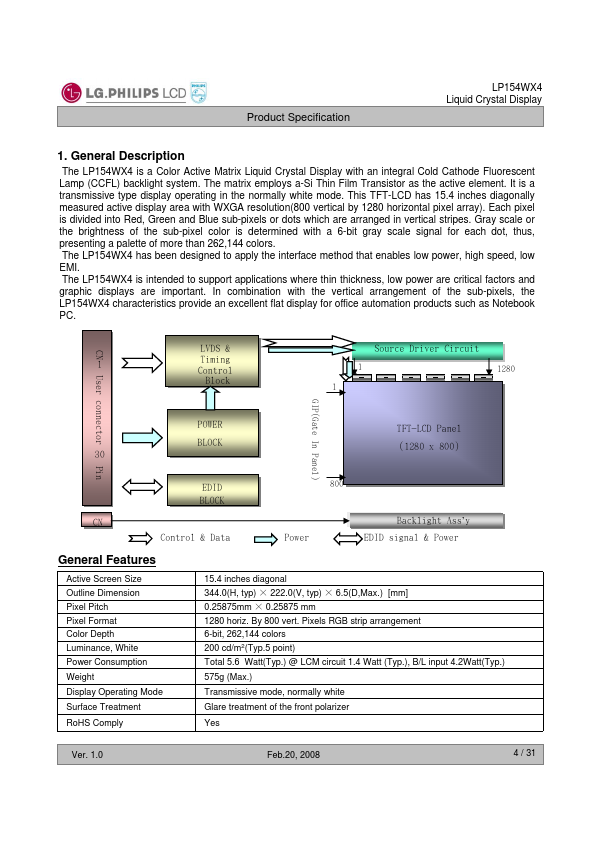

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply 15.4 inches diagonal 344.0(H, typ) × 222.0(V, typ) × 6.5(D,Max. ) [mm] 0.25875mm × 0.25875 mm 1280 horiz. By 800 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 200 cd/m2(Typ.5 point) Total 5.6 Watt(Typ. ) @ LCM circuit 1.4 Watt (Typ. ), B/L input 4.2Watt(Typ. ) 575g (Max. ) Transmissive mode, normally white Glare treatment o.

📥 Download Datasheet

Datasheet preview – LP154WX4-TLC8

Datasheet Details

Part number LP154WX4-TLC8
Manufacturer LG Electronics
File Size 572.95 KB
Description Liquid Crystal Display
Datasheet download datasheet LP154WX4-TLC8 Datasheet
Additional preview pages of the LP154WX4-TLC8 datasheet.

📁 Similar Datasheet

  • LP154WE3-TLA1 - TFT LCD (ETC)
  • LP154WE3-TLB1 - TFT LCD (ETC)
  • LP1500 - 1W POWER PHEMT (Filtronic Compound Semiconductors)
  • LP1500P100 - PACKAGED 1W POWER PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT223 - Low Noise/ High Linearity Packaged PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT2231 - Low Noise/ High Linearity Packaged PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT2232 - Low Noise/ High Linearity Packaged PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT2233 - Low Noise/ High Linearity Packaged PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT89 - LOW NOISE/ HIGH LINEARITY PACKAGED PHEMT (Filtronic Compound Semiconductors)
  • LP1503VR - Surface finishing Metal and Wood (FLEX)
Other Datasheets by LG

Full PDF Text Transcription

Click to expand full text

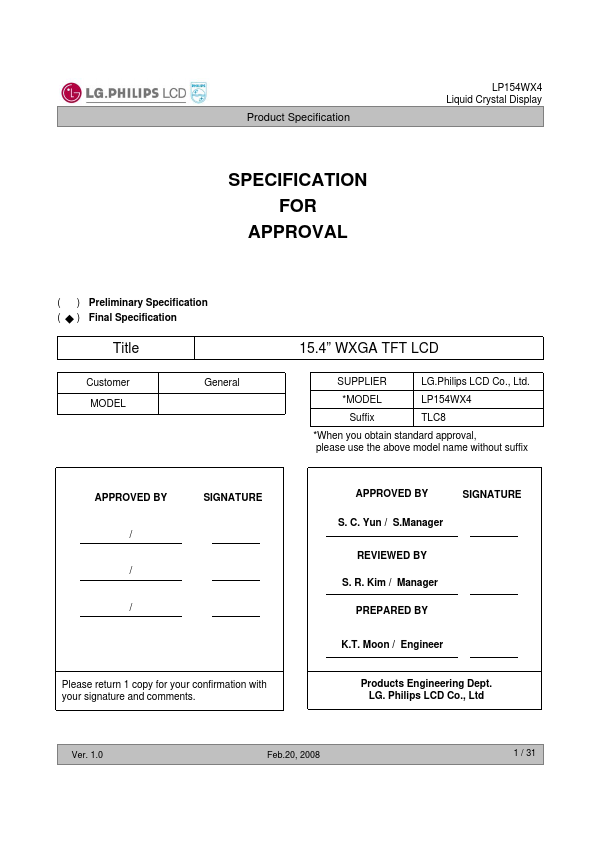

LP154WX4 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification ( ◆ ) Final Specification Title Customer MODEL General 15.4” WXGA TFT LCD SUPPLIER *MODEL Suffix www.DataSheet.net/ LG.Philips LCD Co., Ltd. LP154WX4 TLC8 *When you obtain standard approval, please use the above model name without suffix APPROVED BY SIGNATURE APPROVED BY S. C. Yun / S.Manager SIGNATURE / REVIEWED BY / S. R. Kim / Manager / PREPARED BY K.T. Moon / Engineer Please return 1 copy for your confirmation with your signature and comments. Products Engineering Dept. LG. Philips LCD Co., Ltd Ver. 1.0 Feb.20, 2008 1 / 31 Datasheet pdf - http://www.DataSheet4U.co.
