LP156WHB-TLA1 - HD TFT LCD

Description

2.

3.

ELECTRICAL SPECIFICATIONS………………………………………….…………… 6 3-1.

Features

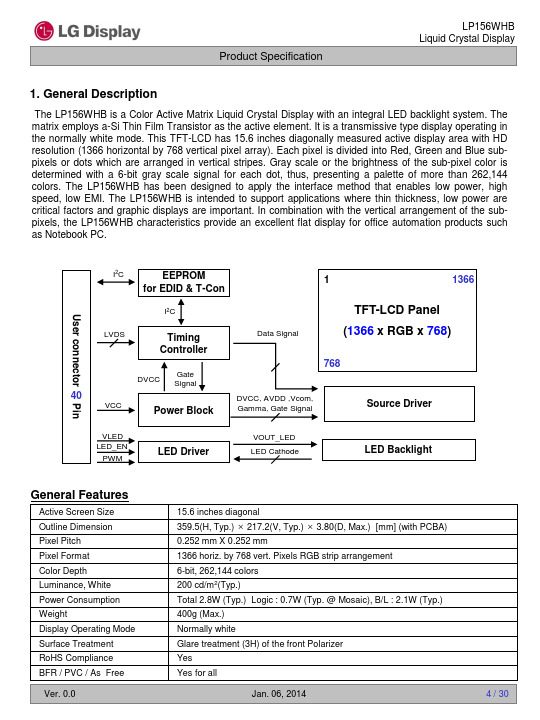

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Compliance BFR / PVC / As Free Ver. 0.0 15.6 inches diagonal 359.5(H, Typ. ) × 217.2(V, Typ. ) × 3.80(D, Max. ) [mm] (with PCBA) 0.252 mm X 0.252 mm 1366 horiz. by 768 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 200 cd/m2(Typ. ) Total 2.8W (Typ. ) Logic : 0.7W (Typ. @ Mosaic), B/L : 2.1W (Typ. ) 400g (Max. ) Normally white Glare.

📥 Download Datasheet

Datasheet preview – LP156WHB-TLA1

Datasheet Details

Part number LP156WHB-TLA1
Manufacturer LG
File Size 814.53 KB
Description HD TFT LCD
Datasheet download datasheet LP156WHB-TLA1 Datasheet

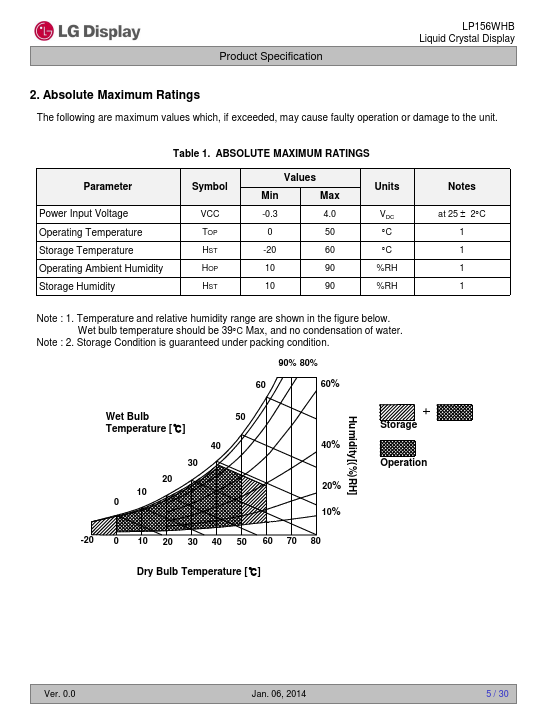

Additional preview pages of the LP156WHB-TLA1 datasheet.

📁 Similar Datasheet

  • LP156WD1-TLB1 - TFT LCD (ETC)
  • LP1500 - 1W POWER PHEMT (Filtronic Compound Semiconductors)
  • LP1500P100 - PACKAGED 1W POWER PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT223 - Low Noise/ High Linearity Packaged PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT2231 - Low Noise/ High Linearity Packaged PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT2232 - Low Noise/ High Linearity Packaged PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT2233 - Low Noise/ High Linearity Packaged PHEMT (Filtronic Compound Semiconductors)
  • LP1500SOT89 - LOW NOISE/ HIGH LINEARITY PACKAGED PHEMT (Filtronic Compound Semiconductors)
  • LP1503VR - Surface finishing Metal and Wood (FLEX)
  • LP154WE3-TLA1 - TFT LCD (ETC)
Other Datasheets by LG

Full PDF Text Transcription

Click to expand full text

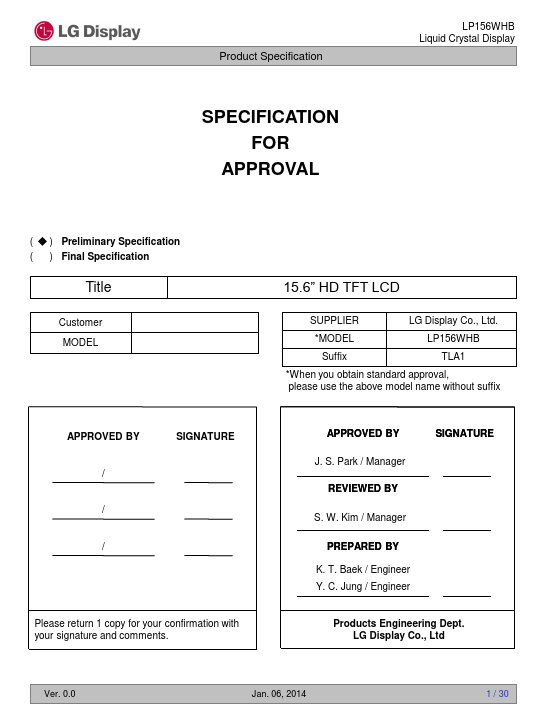

Product Specification SPECIFICATION FOR APPROVAL LP156WHB Liquid Crystal Display www.yslcd.com.tw ( ◆ ) Preliminary Specification ( ) Final Specification Title Customer MODEL Asus APPROVED BY / / / SIGNATURE Please return 1 copy for your confirmation with your signature and comments. 15.6” HD TFT LCD SUPPLIER LG Display Co., Ltd. *MODEL LP156WHB Suffix TLA1 *When you obtain standard approval, please use the above model name without suffix APPROVED BY J. S. Park / Manager REVIEWED BY S. W. Kim / Manager PREPARED BY K. T. Baek / Engineer Y. C. Jung / Engineer SIGNATURE Products Engineering Dept. LG Display Co., Ltd Ver. 0.0 Jan. 06, 2014 1 / 30 Studio Technology Co. Ltd. ( www.yslcd.com.tw ) www.yslcd.com.
