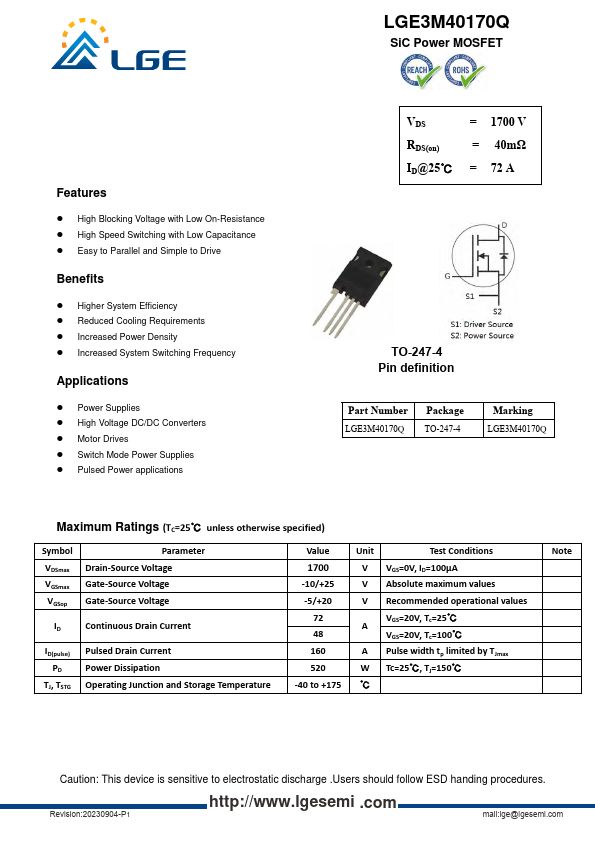

LGE3M40170Q
Features
- High Blocking Voltage with Low On-Resistance
- High Speed Switching with Low Capacitance
- Easy to Parallel and Simple to Drive
Benefits
- Higher System Efficiency
- Reduced Cooling Requirements
- Increased Power Density
- Increased System Switching Frequency
Applications
- Power Supplies
- High Voltage DC/DC Converters
- Motor Drives
- Switch Mode Power Supplies
- Pulsed Power applications
VDS RDS(on) ID@25℃
= 1700 V = 40mΩ = 72 A
TO-247-4 Pin definition
Part Number
Package
TO-247-4
Marking
Maximum Ratings (TC=25℃ unless otherwise specified)
Symbol VDSmax VGSmax VGSop
Parameter Drain-Source Voltage Gate-Source Voltage Gate-Source Voltage
Continuous Drain Current
ID(pulse) PD
TJ, TSTG
Pulsed Drain Current Power Dissipation Operating Junction and Storage Temperature
Value 1700 -10/+25 -5/+20
72 48 160 520 -40 to +175
Unit
Test Conditions
V VGS=0V, ID=100μA V Absolute maximum values
V Remended operational values
A VGS=20V, Tc=25℃...
