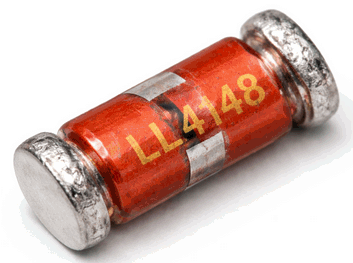

LL4148 - SURFACE MOUNT FAST SWITCHING DIODE

Product Overview

LITE-ON

📥 Download Datasheet

LL4148 SURFACE MOUNT FAST SWITCHING DIODE by LITE-ON - Datasheet Preview — Datasheet preview – LL4148

Datasheet Details

Part number	LL4148
Manufacturer	LITEON
File Size	269.24 KB
Description	SURFACE MOUNT FAST SWITCHING DIODE
Datasheet	LL4148 Datasheet
Note	This datasheet PDF includes multiple part numbers: LL4148, LL4148-LITE. Please refer to the document for exact specifications by model.
Additional preview pages of the LL4148 datasheet.

Product details

Features

Fast switching device (Trr < 4.0 ns).
LL-34 (Mini-MELF) package.
Surface device type mounting.
Hermetically sealed glass.
Compression bonded construction.
All external surface are corrosion resistant and terminal are readily solder able.
RoHS compliant.
Matte Tin(Sn) terminal finish.
