LTV-3223 - Photocoupler

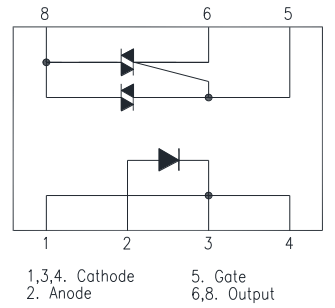

General Description

Solid State Relays (SSR) are integration of an AlGaAs Light Emitting Diode, a Phototriac Detector and a main power Triac.

These devices are ideally suited for controlling high voltage AC loads with solid state reliability while providing 5 KV isolation (Viso(rms)) between input to output.

Key Features

  • 8 pin DIP package.
  • High repetitive peak off-state voltage VDRM : Min. 600 V.
  • Isolation voltage between input and output Viso : 5,000 Vrms.
  • Safety approval VDE DIN EN 60747-5-5 / IEC 60747-5-5 UL 1577 (E113898) UL 508 (E490256) CUL CA5A (E113898) CQC GB4943.1-2011/GB8898-2011 (meet Altitude up to 5000m) DEMKO IEC/EN62368-1; IEC/EN 60950-1; IEC/EN 60065.
  • RoHS Compliance All materials be used in device are followed EU RoHS directive (No.2002/95/EC) Part Number Peak Off-s.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LTV-302X Photocoupler LITEON
LTV-305X Photocoupler LITEON
LTV-3063 Photocoupler LITEON
LTV-3083 Photocoupler LITEON
LTV-3150-L Photocouplers LITEON

Other Datasheets by LITEON

Part Number Description
LTV-3213 Photocoupler
LTV-3120 Photocoupler
LTV-3120M Photocoupler
LTV-3120S Photocoupler
LTV-314 Photocoupler

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Photocoupler Product Data Sheet LTV-3223 Spec No. :DS70-2017-0010 Effective Date: 01/22/2019 Revision: C LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto Photocoupler LTV-22X3 series LTV-32X3 series 1. DESCRIPTION Solid State Relays (SSR) are integration of an AlGaAs Light Emitting Diode, a Phototriac Detector and a main power Triac. These devices are ideally suited for controlling high voltage AC loads with solid state reliability while providing 5 KV isolation (Viso(rms)) between input to output. 1.1 Features  8 pin DIP package  High repetitive peak off-state voltage VDRM : Min.
