LTV-826 Datasheet | LITEON

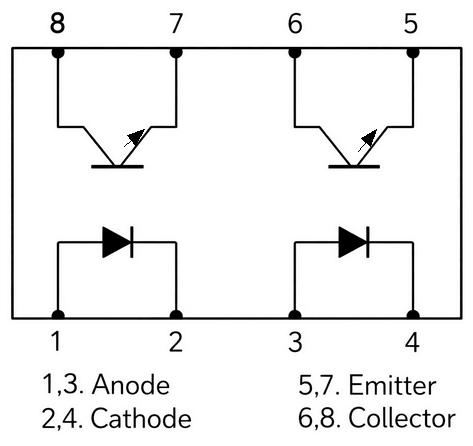

DESCRIPTION 1.1 Features Current transfer ratio ( CTR : MIN. 50% at IF = 5m A, VCE = 5V ) High input-output isolation voltage ( Viso = 5,000Vrms ) Response time ( tr : TYP. 4µs at VCE = 2V, IC = 2m A, RL = 100Ω ) Dual-in-line package : LTV-816 : 1-channel type LTV-826 : 2-channel type LTV-846 : 4-channel type Wide lead spacing package : LTV-816M : 1-channel type LTV-826M : 2-channel type LTV-846M : 4-channel type Surface mounting package : LTV-816S : 1-channel type LTV-826S : 2-channel type LTV-846S : 4-channel type Tape and reel packaging : LTV-816S-TA : 1-channel type LTV-816S-TA1 : 1-channel type LTV-816S-TP : 1-channel type LTV-816S-TP1 : 1-channel type LTV-826S-TA : 2-channel type LTV-826S-TA1 : 2-channel type Safety approval UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) CSA CA5A CQC GB4943.1-2011/ GB8898-2011 (meet Altitude up to 5000m) Nordic Safety ( FIMKO/NEMKO/SEMKO/DEMKO) BSI Ro HS pliance All materials be used in device are followed EU Ro HS directive (No.2002/95/EC). ESD pass HBM 8000V/MM2000V MSL class1 1.2 Applications Hybrid substrates that require high density mounting. Programmable controllers 1/17 Part No.: LTV-8x6 series BNC-OD-FC002/A4 Rev.: K 2. PACKAGE DIMENSIONS 2.1 LTV-816 2.2 LTV-816M Photocoupler LTV-8x6 series 2.3 LTV-816S Notes : 1. 2-digit year code. 2. 2-digit work week. 3. Factory identification mark shall be marked (W: China-CZ, Y: Thailand) 4. Rank shall be or shall not be marked. 5. “- ” for halogen free option. 6. “4”or”V” for VDE option. Dimensions in millimeters (inches). 2/17 Part No.: LTV-8x6 series BNC-OD-FC002/A4 Rev.: K 2.4 LTV-826 2.5 LTV-826M Photocoupler LTV-8x6 series 2.6 LTV-826S Notes : 1. 2-digit year code. 2. 2-digit work week. 3. Factory identification mark shall be...
