LTST-C170GKT - LED

Key Features

  • Package in 8mm tape on 7" diameter reels.
  • Compatible with automatic placement equipment.
  • Compatible with infrared and vapor phase reflow solder process.
  • EIA STD package.

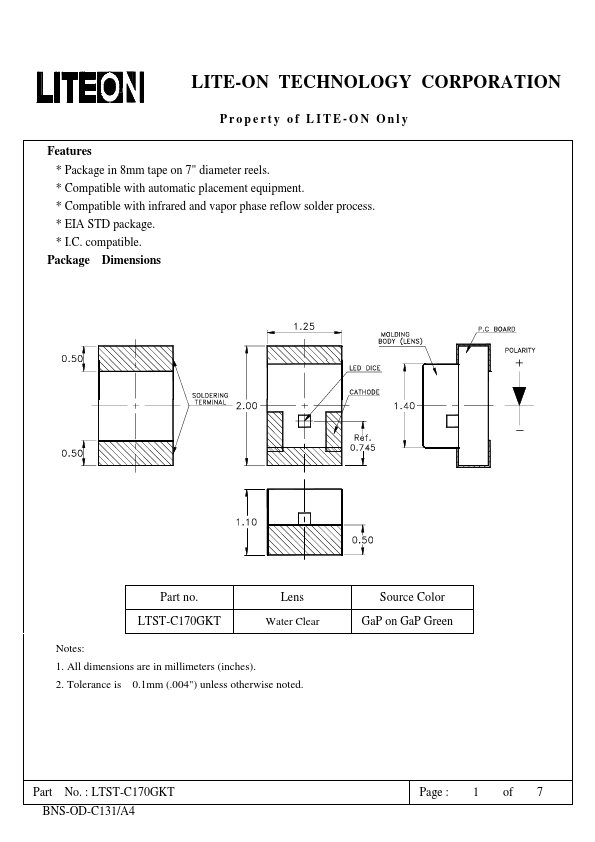

  • I. C. compatible. Package Dimensions Part no. LTST-C170GKT Lens Water Clear Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is 0.1mm (.004") unless otherwise noted. Source Color GaP on GaP Green Part No. : LTST-C170GKT BNS-OD-C131/A4 Page : 1 of 7 LITE-ON.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LTST-C170 Chip LED Lamp LITE-ON Electronics
LTST-C170-QRKTC-QM LED Lite-On
LTST-C170CKT Chip LED Lite-On Technology
LTST-C170KGKT SMD LED Lite-On
LTST-C170KRKT Ultra bright AlInGap Chip LED Lite-On Technology

Other Datasheets by LITEON

Part Number Description
LTST-C170KFKT SMD LED
LTST-C170TBKT SMD LED
LTST-C170TGKT SMD LED
LTST-C150CKT SMD LED
LTST-C150KFKT SMD LED

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
LITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only Features * Package in 8mm tape on 7" diameter reels. * Compatible with automatic placement equipment. * Compatible with infrared and vapor phase reflow solder process. * EIA STD package. * I.C. compatible. Package Dimensions Part no. LTST-C170GKT Lens Water Clear Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is 0.1mm (.004") unless otherwise noted. Source Color GaP on GaP Green Part No. : LTST-C170GKT BNS-OD-C131/A4 Page : 1 of 7 LITE-ON TECHNOLOGY CORPORATION Property of LITE-ON Only Absolute Maximum Ratings At Ta=25 Parameter Power Dissipation Peak Forward Current (1/10 Duty Cycle, 0.
