LTST-C191KSKT - SMD LED

General Description

SMD LED lamps from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications.

Key Features

  • Meet RoHS.
  • Extra thin (0.55 mm) Chip LED.
  • Ultra bright AlInGaP Chip LED.
  • Package in 8mm tape on 7" diameter reels.
  • EIA STD package.
  • I. C. compatible.
  • Compatible with automatic placement equipment.
  • Compatible with infrared reflow solder process 1.2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LTST-C191KGKT LED Lite-On Technology
LTST-C191GKT LED Lite-On
LTST-C190 Chip LED Lamp LITE-ON Electronics
LTST-C190GKT Green Lens LITE-ON Electronics
LTST-C190KFKT SMD LED Lite-On

Other Datasheets by LITEON

Part Number Description
LTST-C191KRKT SMD LED
LTST-C191TBKT SMD LED
LTST-C191TBKT-5A SMD LED
LTST-C193TBKT-2A SMD LED
LTST-C195KGJEKT SMD LED

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

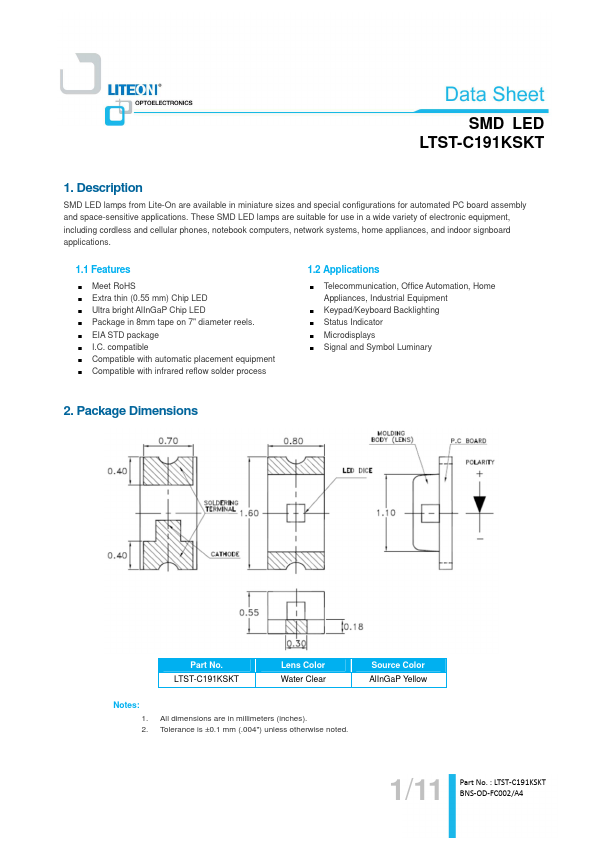

SMD LED Product Data Sheet LTST-C191KSKT Spec No. :DS22-2000-224 Effective Date: 05/28/2025 Revision: J LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto SMD LED LTST-C191KSKT 1. Description SMD LED lamps from Lite-On are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications. These SMD LED lamps are suitable for use in a wide variety of electronic equipment, including cordless and cellular phones, notebook computers, network systems, home appliances, and indoor signboard applications. 1.1 Features  Meet RoHS  Extra thin (0.
