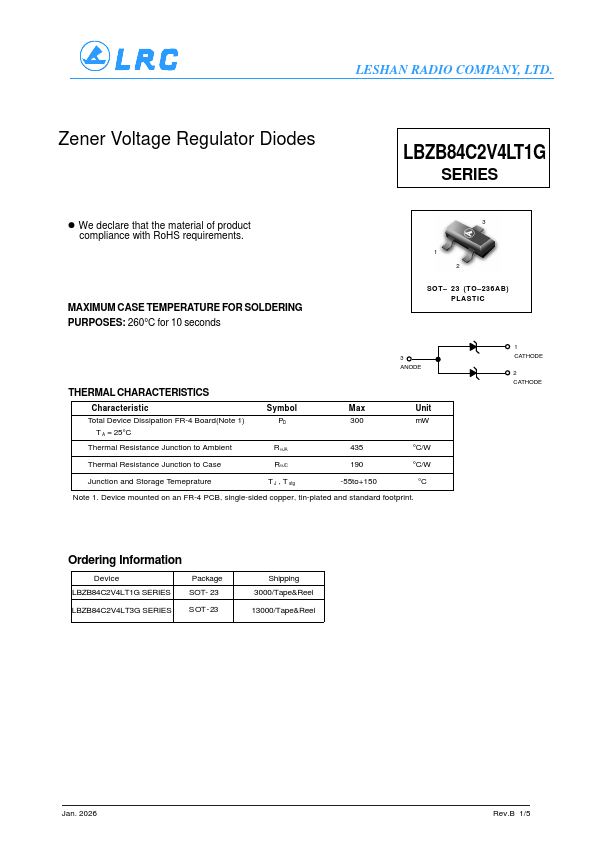

LBZB84C75LT1G
LESHAN RADIO PANY, LTD.
Zener Voltage Regulator Diodes
LBZB84C2V4LT1G
SERIES
ƽ We declare that the material of product pliance with Ro HS requirements.
1 2
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 seconds
SOT- 23 (TO- 236AB) PLASTIC
3 ANODE
THERMAL CHARACTERISTICS
Characteristic Total Device Dissipation FR-4 Board(Note 1)
T A = 25°C
Thermal Resistance Junction to Ambient
Symbol PD
R θJA
Max 300
Unit m W
°C/W
Thermal Resistance Junction to Case
RθJC
°C/W
Junction and Storage Temeprature
T J , T stg
-55to+150
°C
Note 1. Device mounted on an FR-4 PCB, single-sided copper, tin-plated and standard footprint.
1 CATHODE
2 CATHODE
Ordering Information
Device LBZB84C2V4LT1G SERIES
Package SOT- 23
LBZB84C2V4LT3G SERIES SOT-23
Shipping 3000/Tape&Reel 13000/Tape&Reel
Jan. 2026
Rev.B 1/5
LESHAN RADIO PANY, LTD.

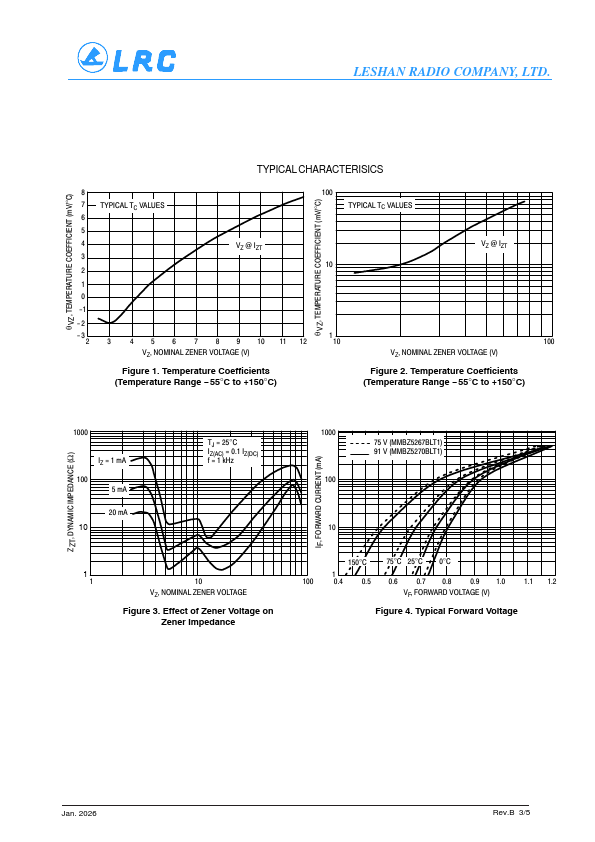

ELECTRICAL CHARACTERISTICS...
