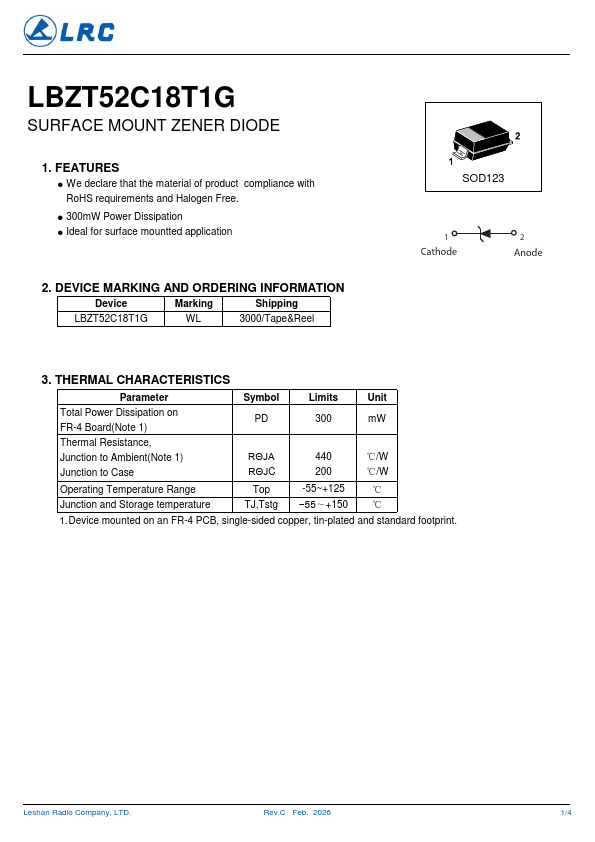

LBZT52C18T1G
FEATURES
- We declare that the material of product pliance with Ro HS requirements and Halogen Free.
- 300m W Power Dissipation
- Ideal for surface mountted application
2. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
3000/Tape&Reel
SOD123
Cathode
Anode
3. THERMAL CHARACTERISTICS
Parameter
Symbol
Limits
Unit
Total Power Dissipation on FR-4 Board(Note 1)
300 m W
Thermal Resistance, Junction to Ambient(Note 1) Junction to Case
RΘJA RΘJC
℃/W
℃/W
Operating Temperature Range Junction and Storage temperature
Top
-55~+125
℃
TJ,Tstg
- 55∼+150 ℃
1. Device mounted on an FR-4 PCB, single-sided copper, tin-plated and standard footprint.
Leshan Radio pany, LTD.
Rev.C Feb. 2026
1/4
SURFACE MOUNT ZENER DIODE

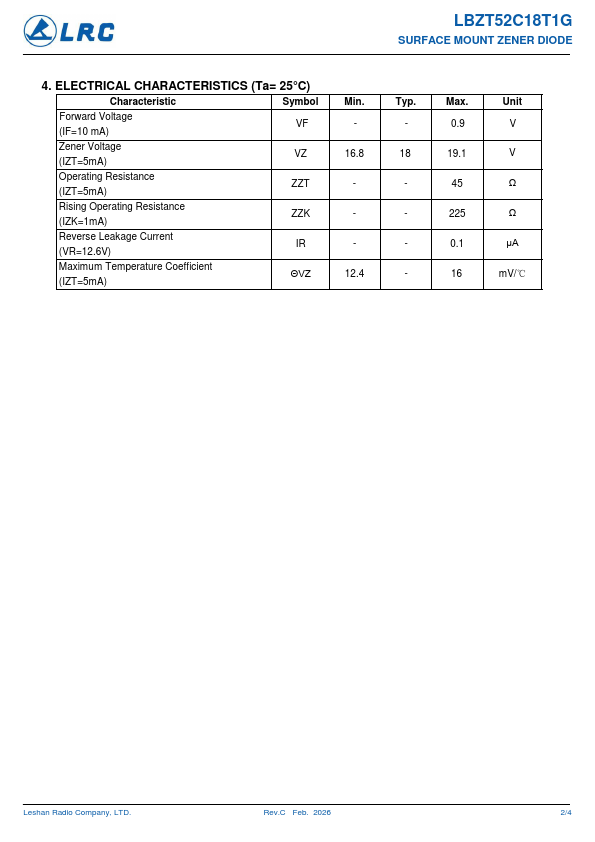

4. ELECTRICAL CHARACTERISTICS (Ta=...
