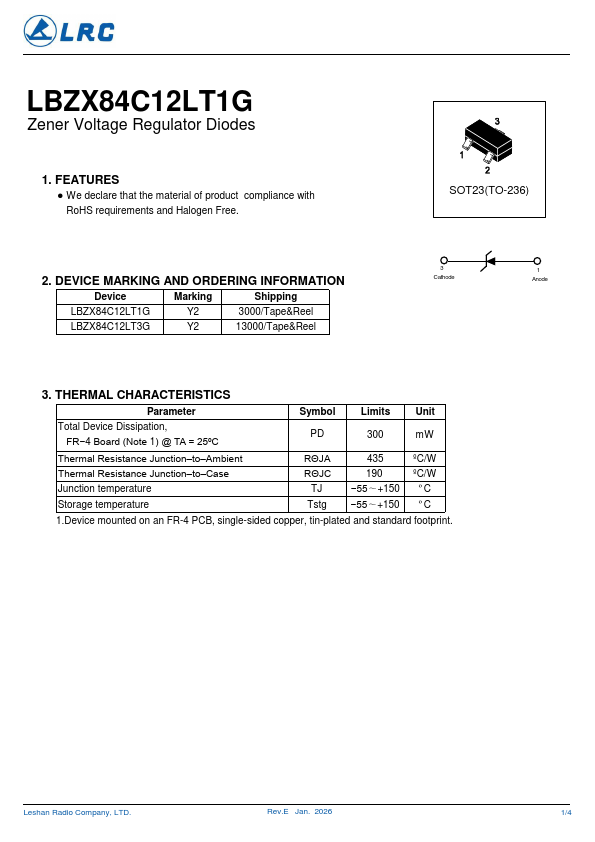

LBZX84C12LT1G
FEATURES
- We declare that the material of product pliance with Ro HS requirements and Halogen Free.
2. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
Y2
3000/Tape&Reel
LBZX84C12LT3G
Y2
13000/Tape&Reel
SOT23(TO-236)
3 Cathode
1 Anode
3. THERMAL CHARACTERISTICS
Parameter
Symbol Limits Unit
Total Device Dissipation, FR- 4 Board (Note 1) @ TA = 25ºC
300 m W
Thermal Resistance Junction- to- Ambient
RΘJA
ºC/W
Thermal Resistance Junction- to- Case Junction temperature
RΘJC TJ
ºC/W
- 55∼+150 ºC
Storage temperature
Tstg
- 55∼+150 ºC
1.Device mounted on an FR-4 PCB, single-sided copper, tin-plated and standard footprint.
Leshan Radio pany, LTD.
Rev.E Jan. 2026
1/4
Zener Voltage Regulator Diodes

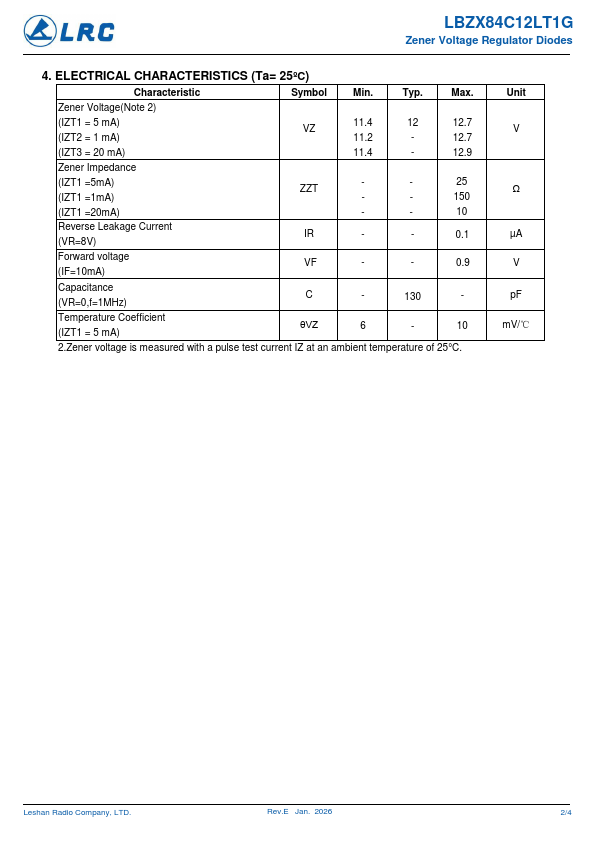

4. ELECTRICAL CHARACTERISTICS (Ta= 25ºC)
Characteristic
Symbol...
