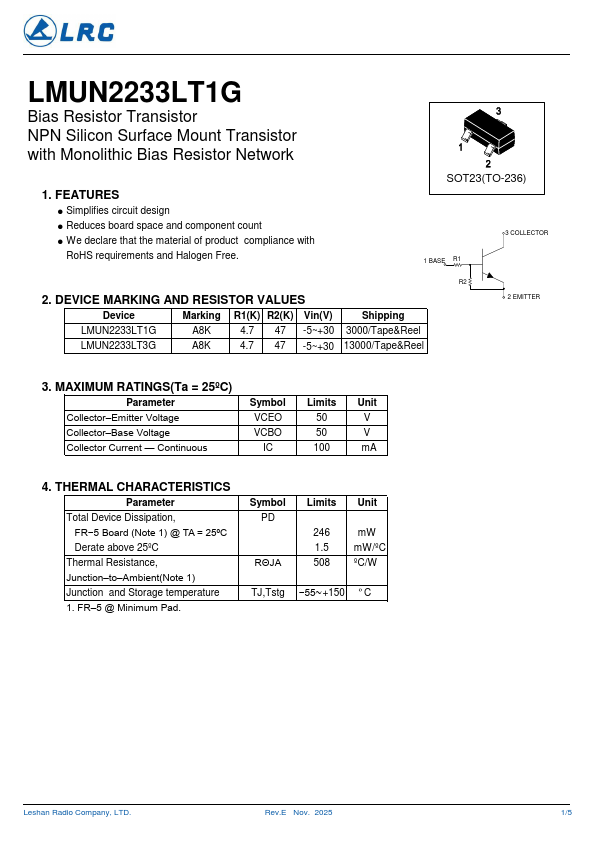

LMUN2233LT1G
FEATURES
- Simplifies circuit design
- Reduces board space and ponent count
- We declare that the material of product pliance with
Ro HS requirements and Halogen Free.
SOT23(TO-236)
1 BASE R1
3 COLLECTOR
R2
2. DEVICE MARKING AND RESISTOR VALUES
Device
Marking R1(K) R2(K) Vin(V)
Shipping
A8K
4.7 47 -5~ +30 3000/Tape&Reel
LMUN2233LT3G
A8K
4.7 47 -5~ +30 13000/Tape&Reel
2 EMITTER
3. MAXIMUM RATINGS(Ta = 25ºC)
Parameter
Symbol Limits Unit
Collector- Emitter Voltage
VCEO
Collector- Base Voltage
VCBO
Collector Current
- Continuous
100 m A
4. THERMAL CHARACTERISTICS
Parameter Total Device Dissipation,
FR- 5 Board (Note 1) @ TA = 25ºC Derate above 25ºC Thermal Resistance, Junction- to- Ambient(Note 1) Junction and Storage temperature 1. FR- 5 @ Minimum Pad.
Symbol PD
RΘJA
Limits Unit
246 m W
1.5 m...
