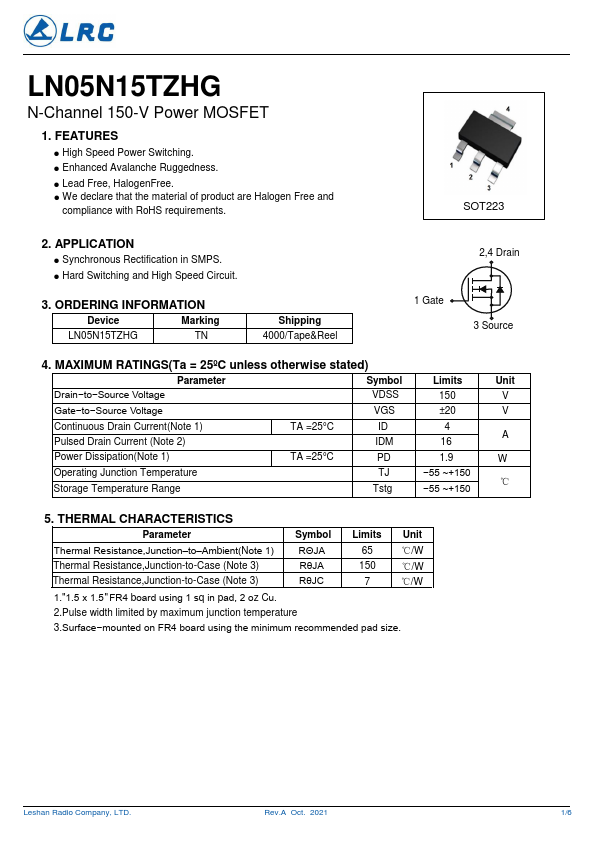

LN05N15TZHG
FEATURES
- High Speed Power Switching.
- Enhanced Avalanche Ruggedness.
- Lead Free, Halogen Free.
- We declare that the material of product are Halogen Free and pliance with Ro HS requirements.
SOT223
2. APPLICATION
- Synchronous Rectification in SMPS.
- Hard Switching and High Speed Circuit.
3. ORDERING INFORMATION
Device
Marking
Shipping 4000/Tape&Reel
2,4 Drain
1 Gate
3 Source
4. MAXIMUM RATINGS(Ta = 25ºC unless otherwise stated)
Parameter
Symbol
Limits
Unit
Drain- to- Source Voltage
VDSS
Gate- to- Source Voltage
±20
Continuous Drain Current(Note 1) Pulsed Drain Current (Note 2)
TA =25°C
Power Dissipation(Note 1)
TA =25°C
Operating Junction Temperature Storage Temperature Range
- 55...
