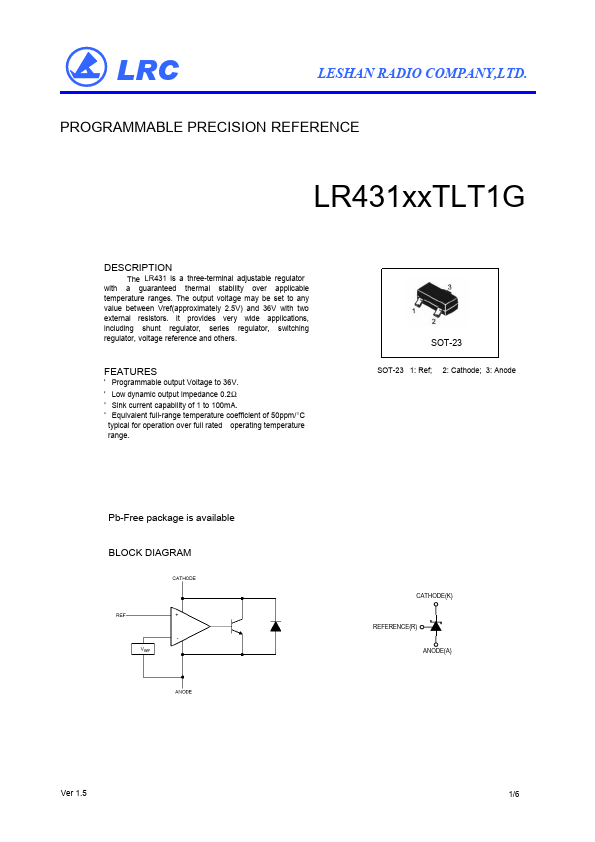

LR431BPTLT1G
DESCRIPTION
The LR431 is a three-terminal adjustable regulator with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between Vref(approximately 2.5V) and 36V with two external resistors. It provides very wide applications, including shunt regulator, series regulator, switching regulator, voltage reference and others.
FEATURES
' Programmable output Voltage to 36V. ' Low dynamic output impedance 0.2Ω. ' Sink current capability of 1 to 100m A. ' Equivalent full-range temperature coefficient of 50ppm/°C typical for operation over full rated operating temperature range.
SOT-23
SOT-23 1: Ref; 2: Cathode; 3: Anode
Pb-Free package is available BLOCK DIAGRAM
CATHODE(K) REFERENCE(R)
ANODE(A)
Ver 1.5
1/6
LESHAN RADIO PANY,LTD.
ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies unless otherwise specified))
PARAMETER Cathode Voltage Cathode Current Range(Continuous) Reference Input Current Range Operating Junction...
