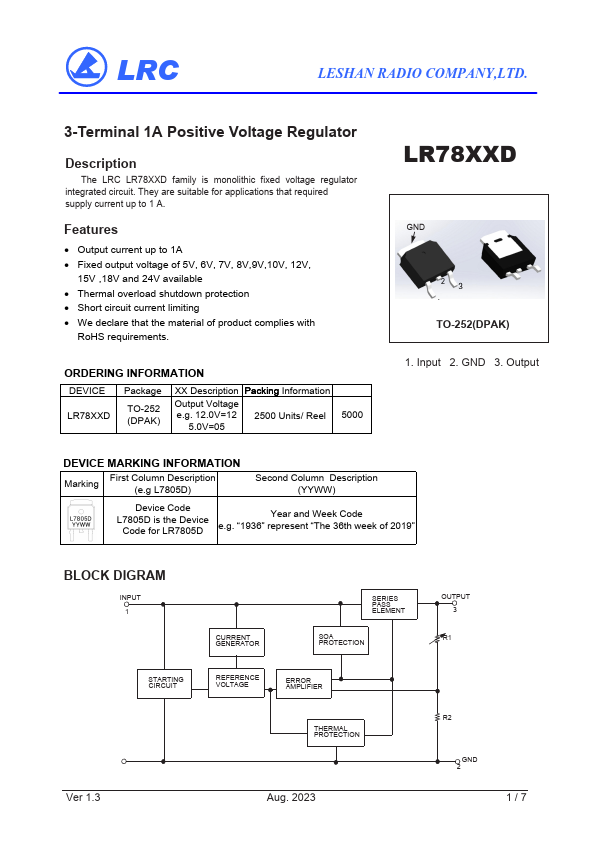

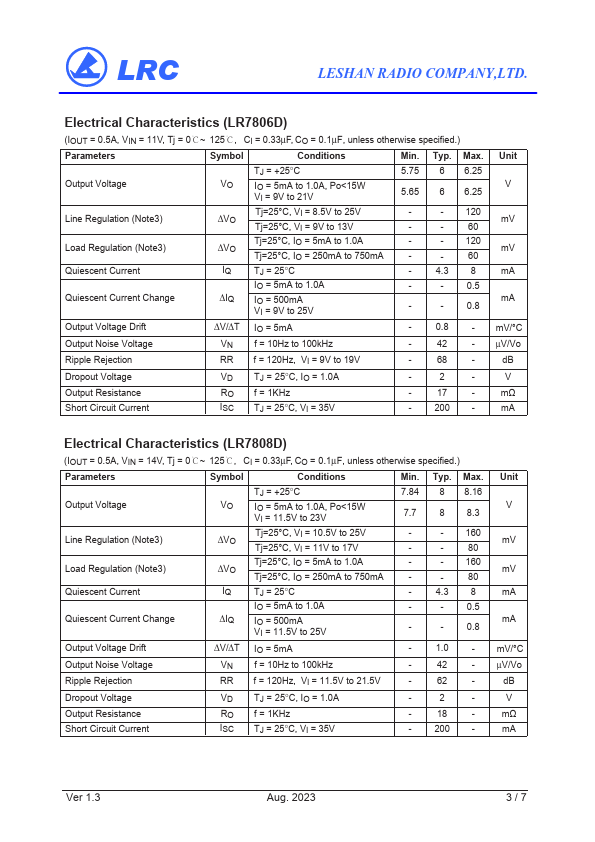

LR7806D
Description
The LRC LR78XXD family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 1 A.
Features
- Output current up to 1A
- Fixed output voltage of 5V, 6V, 7V, 8V,9V,10V, 12V,
15V ,18V and 24V available
- Thermal overload shutdown protection
- Short circuit current limiting
- We declare that the material of product plies with
Ro HS requirements.
ORDERING INFORMATION
DEVICE LR78XXD
Package
TO-252 (DPAK)
XX Description
Packing Information
Output Voltage e.g. 12.0V=12 2500 Units/ Reel
5.0V=05
LR78XXD
TO-252(DPAK) 1. Input 2. GND 3. Output
DEVICE MARKING INFORMATION
Marking
First Column Description
(e.g L7805D)
Second Column Description
(YYWW)
Device Code L7805D is the Device
Code for LR7805D
Year and Week Code e.g. “1936” represent “The 36th week of 2019”
BLOCK DIGRAM
INPUT 1
STARTING CIRCUIT
CURRENT GENERATOR
SERIES PASS ELEMENT SOA PROTECTION
REFERENCE VOLTAGE
ERROR...
