LR7808G datasheet by LRC.
| Part number | LR7808G |
|---|---|
| Datasheet | LR7808G LR7805G Datasheet (PDF) |
| File Size | 436.00 KB |
| Manufacturer | LRC |
| Description | 3-Terminal 1A Positive Voltage Regulator |
|
|

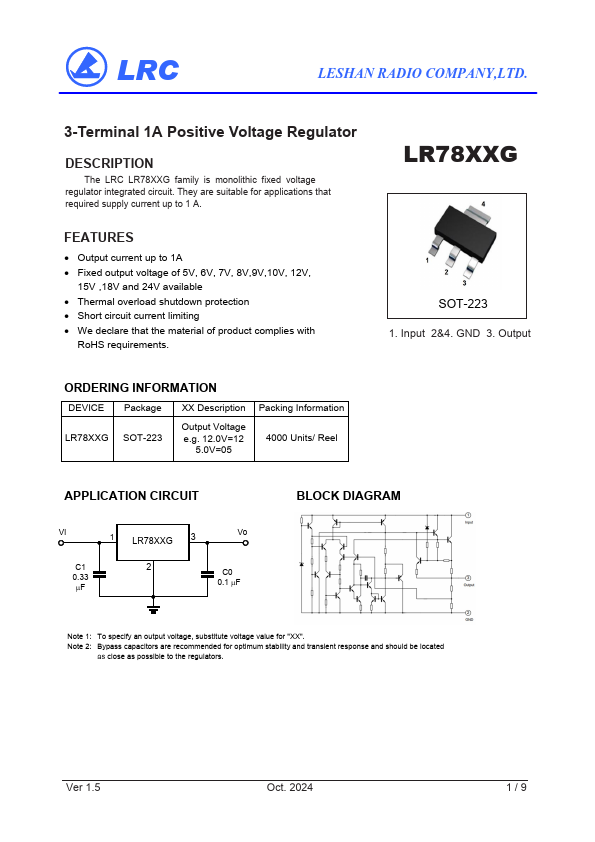

The LRC LR78XXG family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 1.
| Part Number | Description |
|---|---|
| LR7808 | 3-Terminal 1A Positive Voltage Regulators |
| LR7800 | 3-Terminal 1A Positive Voltage Regulators |
| LR7805 | 3-Terminal 1A Positive Voltage Regulators |
| LR7805G | 3-Terminal 1A Positive Voltage Regulator |
| LR7806 | 3-Terminal 1A Positive Voltage Regulators |
| LR7806G | 3-Terminal 1A Positive Voltage Regulator |
| LR7807 | 3-Terminal 1A Positive Voltage Regulators |
| LR7809 | 3-Terminal 1A Positive Voltage Regulators |
| LR7809G | 3-Terminal 1A Positive Voltage Regulator |
| LR7810 | 3-Terminal 1A Positive Voltage Regulators |
