LR7818G
DESCRIPTION
The LRC LR78XXG family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 1 A.
FEATURES
- Output current up to 1A
- Fixed output voltage of 5V, 6V, 7V, 8V,9V,10V, 12V,
15V ,18V and 24V available
- Thermal overload shutdown protection
- Short circuit current limiting
- We declare that the material of product plies with
Ro HS requirements.
LR78XXG
SOT-223
1. Input 2&4. GND 3. Output
ORDERING INFORMATION
DEVICE Package XX Description
LR78XXG SOT-223
Output Voltage e.g. 12.0V=12
5.0V=05
Packing Information 4000 Units/ Reel
APPLICATION CIRCUIT
Vi
C1 0.33 PF
1 LR78XXG 3 2
Vo
C0 0.1 PF
BLOCK DIAGRAM
Note 1: To specify an output voltage, substitute voltage value for "XX". Note 2: Bypass capacitors are remended for optimum stability and transient response and should be located as close as possible to the regulators.
Ver 1.5
Oct. 2024
1/9
LESHAN RADIO PANY,LTD.

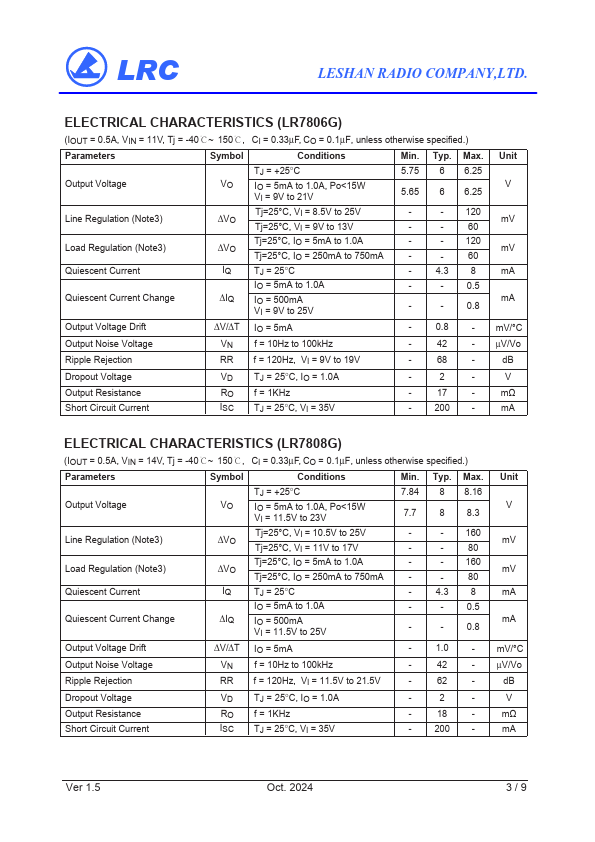

ABSOLUTE MAXIMUM RATINGS...
