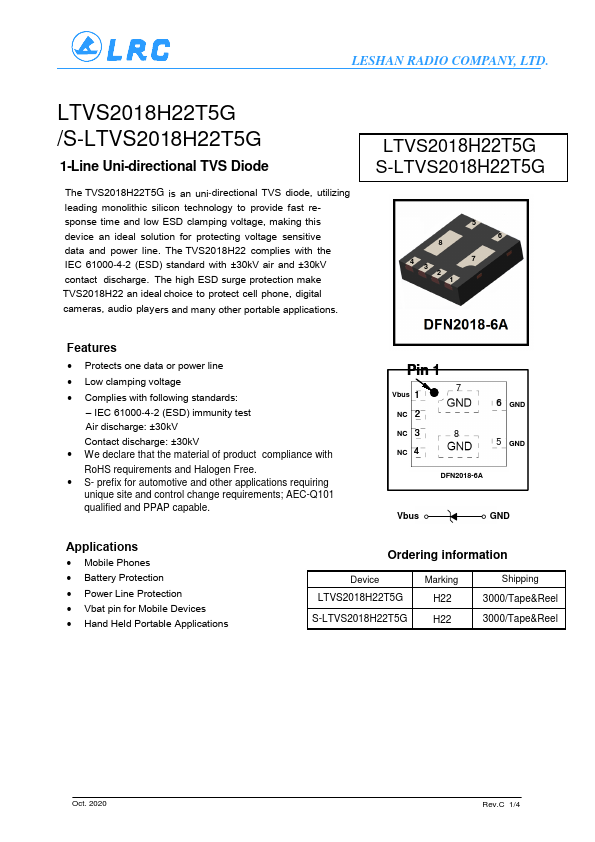

LTVS2018H22T5G
Features
- Protects one data or power line
- Low clamping voltage
- plies with following standards:
- IEC 61000-4-2 (ESD) immunity test
Air discharge: ±30k V
Contact discharge: ±30k V
- We declare that the material of product pliance with
Ro HS requirements and Halogen Free.
- S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable.
Pin 1
7 Vbus 1
NC 2
NC 3
NC 4
6 GND 5 GND
DFN2018-6A
Vbus
Applications
- Mobile Phones
- Battery Protection
- Power Line Protection
- Vbat pin for Mobile Devices
- Hand Held Portable Applications
Ordering information
Device LTVS2018H22T5G S-LTVS2018H22T5G
Marking H22 H22
Shipping 3000/Tape&Reel 3000/Tape&Reel
Oct. 2020
Rev.C 1/4
LESHAN RADIO PANY, LTD.
LTVS2018H22T5G/S-LTVS2018H22T5G

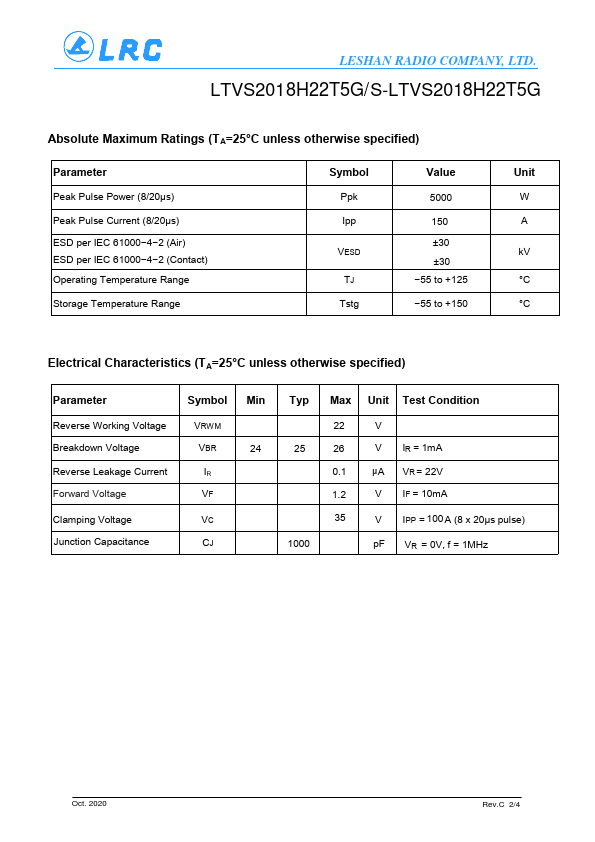

Absolute Maximum Ratings (TA=25°C unless otherwise specified)
Parameter Peak Pulse Power (8/20µs)
Peak Pulse Current (8/20µs) ESD per IEC 61000- 4- 2 (Air) ESD per IEC 61000-...
