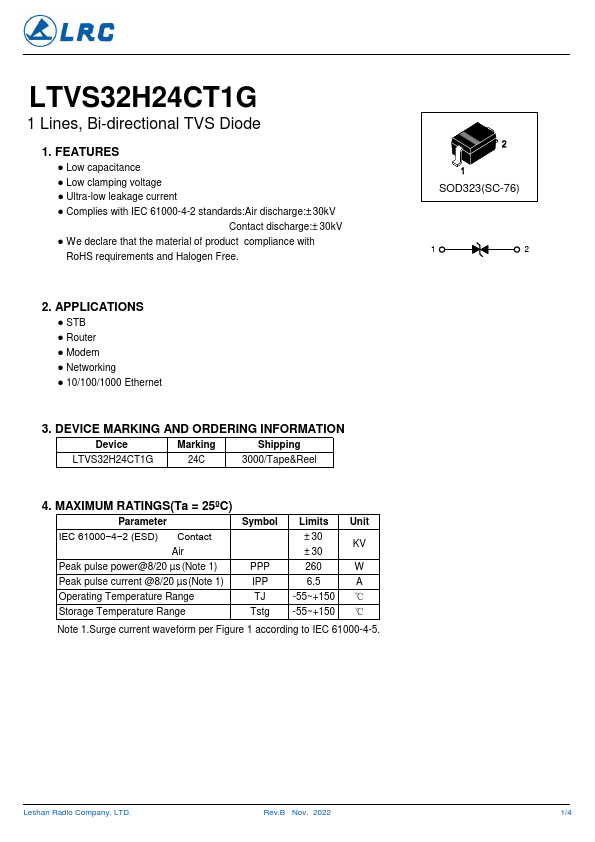

LTVS32H24CT1G
FEATURES
- Low capacitance
- Low clamping voltage
- Ultra-low leakage current
- plies with IEC 61000-4-2 standards:Air discharge:±30k V
Contact discharge:±30k V
- We declare that the material of product pliance with
Ro HS requirements and Halogen Free.
2. APPLICATIONS
- STB
- Router
- Modem
- Networking
- 10/100/1000 Ethernet
3. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
24C
3000/Tape&Reel
4. MAXIMUM RATINGS(Ta = 25ºC)
Parameter
Symbol Limits Unit
IEC 61000- 4- 2 (ESD) Contact Air
±30 KV
±30
Peak pulse power@8/20 µs (Note 1)
Peak pulse current @8/20 µs(Note 1) Operating Temperature Range Storage Temperature Range
IPP TJ Tstg
-55~+150 ℃
-55~+150 ℃

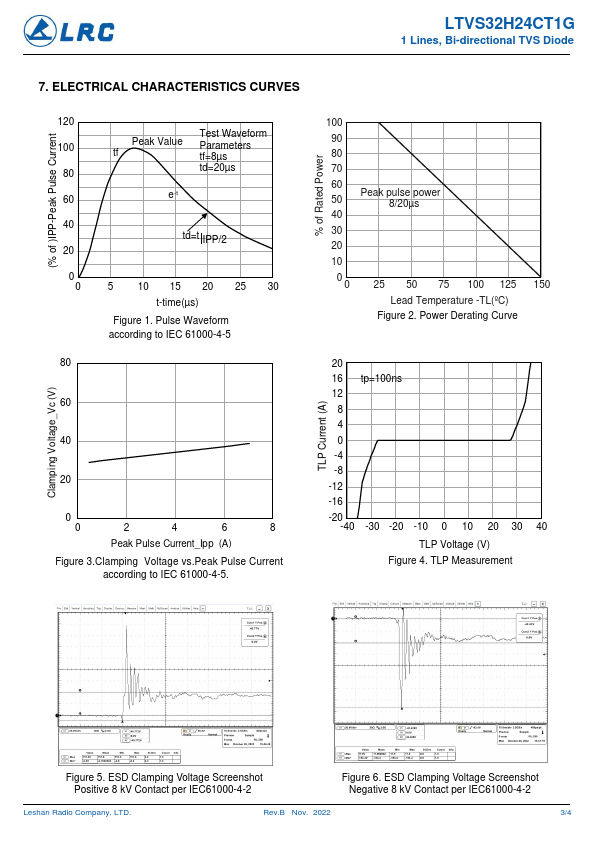

Note 1.Surge current waveform per Figure 1 according to IEC 61000-4-5.
SOD323(SC-76)
Leshan Radio pany, LTD.
Rev.B Nov....
