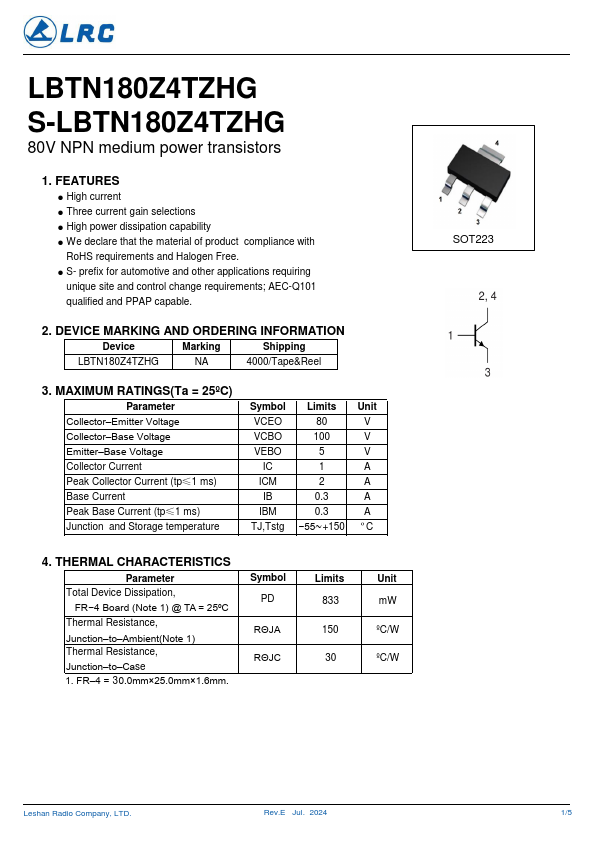

S-LBTN180Z4TZHG
FEATURES
- High current
- Three current gain selections
- High power dissipation capability
- We declare that the material of product pliance with
Ro HS requirements and Halogen Free.
- S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable.
2. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
LBTN180Z4TZHG
4000/Tape&Reel
3. MAXIMUM RATINGS(Ta = 25ºC)
Parameter Collector- Emitter Voltage Collector- Base Voltage Emitter- Base Voltage Collector Current Peak Collector Current (tp≤1 ms) Base Current Peak Base Current (tp≤1 ms) Junction and Storage temperature
Symbol Limits Unit
VCEO
VCBO
VEBO
TJ,Tstg
- 55∼+150 ºC
4. THERMAL CHARACTERISTICS
Parameter Total Device Dissipation,
FR- 4 Board (Note 1) @ TA = 25ºC Thermal Resistance, Junction- to- Ambient(Note 1) Thermal Resistance, Junction- to- Case 1. FR- 4 = 30.0mm×25.0mm×1....
