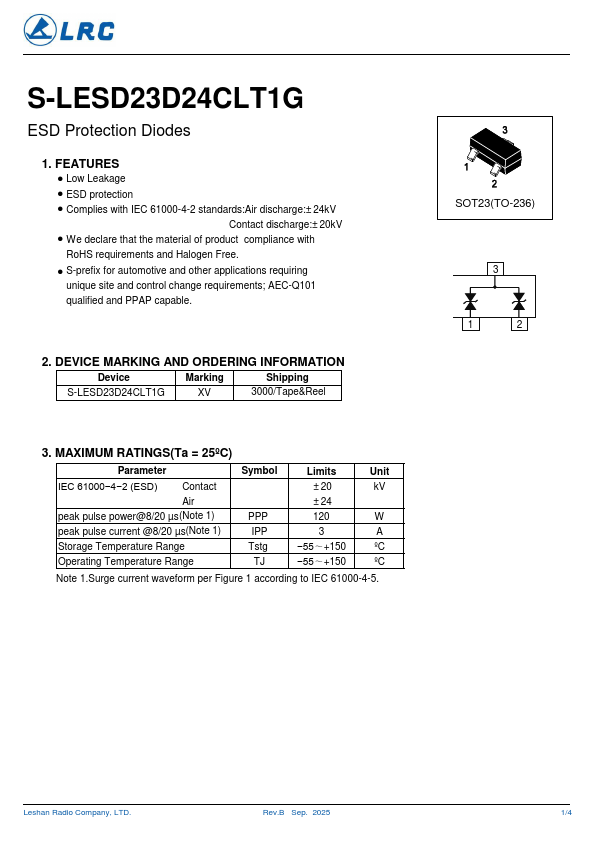

S-LESD23D24CLT1G
FEATURES
- Low Leakage
- ESD protection
- plies with IEC 61000-4-2 standards:Air discharge:±24k V
Contact discharge:±20k V
- We declare that the material of product pliance with
Ro HS requirements and Halogen Free.
- S-prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable.
2. DEVICE MARKING AND ORDERING INFORMATION
Device
Marking
Shipping
3000/Tape&Reel
3. MAXIMUM RATINGS(Ta = 25ºC)
Parameter
Symbol
Limits
Unit
IEC 61000- 4- 2 (ESD) Contact
±20 k V
Air
±24 peak pulse power@8/20 µs(Note 1)
W peak pulse current @8/20 µs(Note 1)
Storage Temperature Range
Tstg
- 55∼+150
ºC
Operating Temperature Range
- 55∼+150
ºC

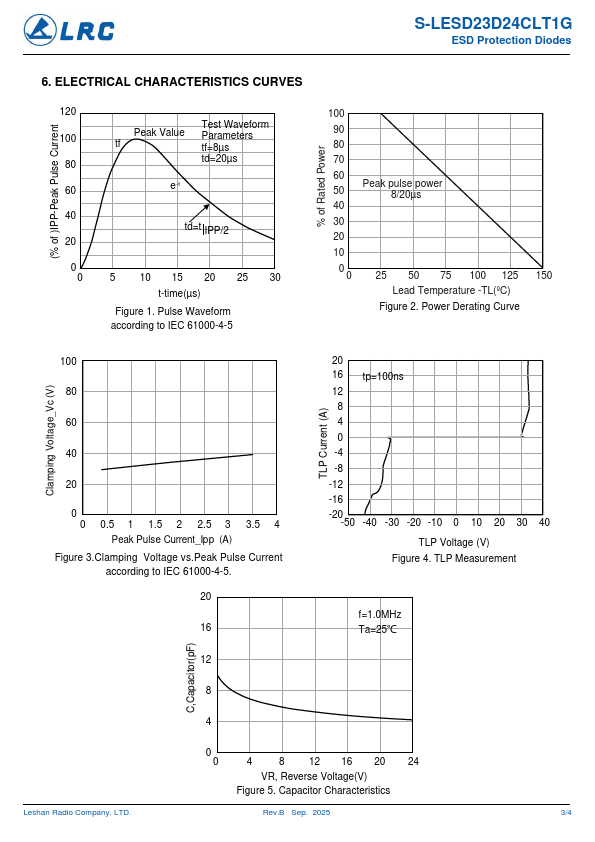

Note 1.Surge current waveform per Figure 1 according to IEC 61000-4-5.
SOT23(TO-236)
Leshan Radio pany, LTD.
Rev.B Sep....
